Finer Power flexible Jaw Coupling Hub, NM50
Available

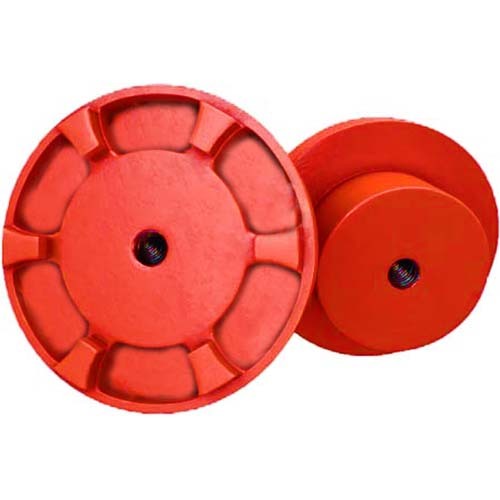

These are pilot bore hubs for NM series flexible jaw couplings, in sizes NM-50 to NM-128. NM series flexible jaw couplings have a distinctive element that weaves in and out between the jaws. The ring has high internal damping, so when the drive reaches a dangerous speed range the coupling limits the torsional oscillation and protects the linked machines. Elements are nitrile rubber (NBR, grade Pb72) in 72 and 82 Shore A hardness, with a temperature range of -40 °C to +120 °C.
The hub has a pilot bore, so you can have it bored and keywayed to suit your shaft within the bore range of the size. A complete coupling needs two hubs and one element.
Where this product is used
- Motor to pump, fan and compressor drives
- Gearbox and conveyor drives
- Drives that pass through a critical speed range
- General machinery drives with shock loading
Features
- Pilot bore hub, bore to suit within the range
- Element weaves between the jaws and damps torsional oscillation
- Bores from 7 to 55mm
- Sold as one hub, with the nitrile element separately
Key specifications
| Specification | Detail |
|---|---|
| Sizes | NM-50 to NM-128 (6 models) |
| Part | Hub, pilot bore (one hub) |
| Bore range | 7 to 55mm |
| Nominal torque | 12.74 to 261.66 Nm |
| Maximum torque | 22.54 to 470 Nm |
| Maximum speed | 5,000 to 13,500rpm |
| Outside diameter | 50 to 128mm |
Sizes available
| Size | Bore min (mm) | Bore max (mm) | OD (mm) | D1 (mm) | L (mm) | S (mm) | Max rpm | Nominal torque (Nm) | Max torque (Nm) | KW per rpm | Mass, set (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NM-50 | 7 | 19 | 50 | 33 | 25 | 2.0±0.5 | 13,500 | 12.74 | 22.54 | 1.33 | 0.52 |
| NM-67 | 9 | 28 | 67 | 46 | 30 | 2.5±0.5 | 10,000 | 21.56 | 39.2 | 2.26 | 0.93 |
| NM-82 | 10 | 32 | 82 | 53 | 40 | 3.0±0.5 | 8,000 | 49 | 88.2 | 5.13 | 1.78 |
| NM-97 | 12 | 42 | 97 | 69 | 50 | 3.0±0.5 | 7,000 | 102.9 | 186.2 | 10.78 | 3.46 |
| NM-112 | 14 | 48 | 112 | 79 | 60 | 3.5±0.5 | 6,000 | 163.66 | 294 | 17.14 | 5 |
| NM-128 | 18 | 55 | 128 | 90 | 70 | 3.5±0.5 | 5,000 | 261.66 | 470 | 27.4 | 7.9 |
Choosing the right option
Choose the size from the torque and the shaft sizes, and apply a service factor for the type of machine. The nominal torque is the continuous rating and the maximum torque is the peak rating for the size. The power rating comes in kW per rpm, so multiply it by the speed in rpm for the power at your speed.
The matching element is Flexible Jaw Coupling Nitrile Element.
Isolate the drive before working on the coupling. Align the two shafts as closely as you can before fitting the coupling, and check the alignment again once the coupling is fitted. Good alignment gives the longest life, whatever the coupling type.
| Option | Part number | SKU |
|---|---|---|
| NM50 | NM-50PB | A0112361 |
| NM67 | NM-67PB | A0112362 |
| NM82 | NM-82PB | A0112363 |
| NM97 | NM-97PB | A0112364 |
| NM112 | NM-112PB | A0112359 |
| NM128 | NM-128PB | A0112360 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Flexible Jaw Coupling Hub, Pilot Bore, NM-50 to NM-128: NM50
SKU: A0112361 | Model: NM-50PB
NM-50 NM series flexible jaw coupling hub, pilot bore, 7 to 19mm bore, 13,500rpm max.
