FYH NA213

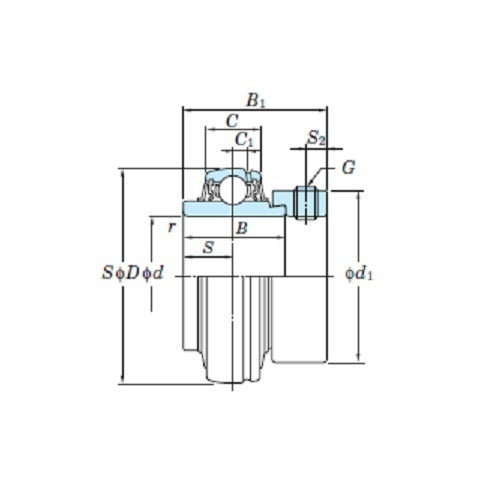

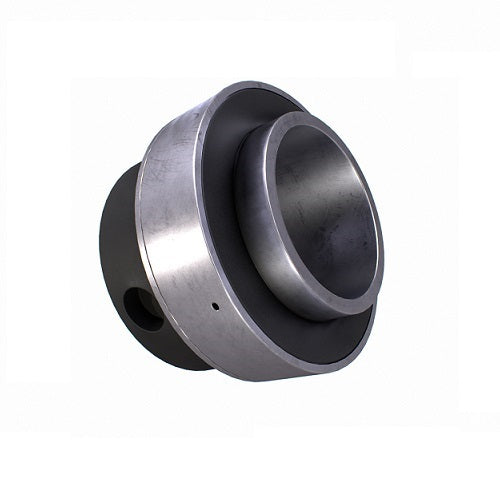

FYH NA213 is an eccentric collar insert bearing with a 65mm bore. It measures 120mm O.D. by 68.2mm inner ring width, with a basic dynamic load rating of 57.2kN and a static rating of 40.1kN. It has a wide inner ring with an eccentric locking collar and a spherical O.D. for a housing with a matching spherical bore.

Where this product is used

• Replacement insert for a plummer block or pillow block unit
• Replacement insert for flange and take-up housings with a matching spherical bore
• Conveyor rollers, drive shafts and idler stations
• Fans, blowers and pumps
• Agricultural, construction and general industrial machinery

Features

• Eccentric locking collar for a 65mm shaft: the collar engages the inner ring and a set screw is tightened to hold it
• Spherical O.D. for housings with a matching spherical bore
• Rubber seal with metal slinger, supplied pre-lubricated with FYH grease
• Basic dynamic load rating Cr 57.2kN and static rating C0r 40.1kN
• Allowable rotating speed 2,200rpm (standard value)

Key specifications

Fitting and use

Fit the collar against the inner ring so the eccentric surfaces engage, then tighten the set screw in the collar.

Match the insert to a housing with the same size number: the spherical O.D. seats in a matching spherical housing bore.

Choosing the right option

If you need another shaft size, the related pages below list the other sizes in this range.

Metric bores are in mm: match the bore to the shaft you have.
