FYH SA202

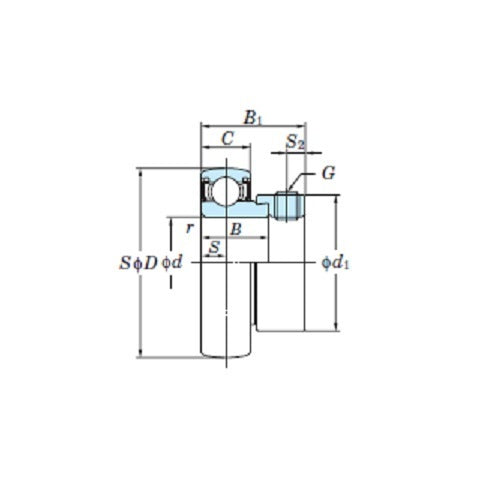

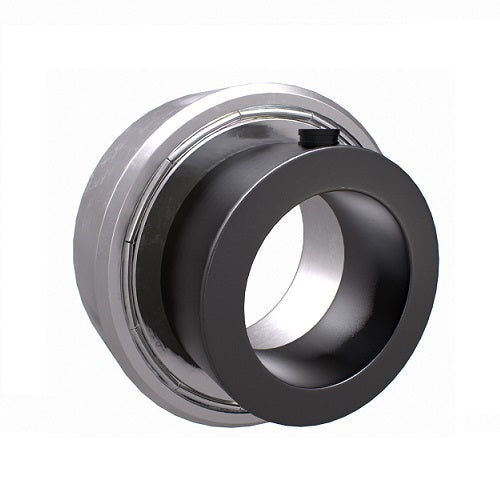

FYH SA202 is an eccentric collar insert bearing with a 15mm bore. It measures 40mm O.D. by 19mm inner ring width, with a basic dynamic load rating of 9.55kN and a static rating of 4.8kN. It has an eccentric locking collar and a spherical O.D. for a housing with a matching spherical bore. It belongs to the light duty SA series.

Where this product is used

• Replacement insert for a plummer block or pillow block unit
• Replacement insert for flange and take-up housings with a matching spherical bore
• Conveyor rollers, drive shafts and idler stations
• Fans, blowers and pumps
• Agricultural, construction and general industrial machinery

Features

• Eccentric locking collar for a 15mm shaft: the collar engages the inner ring and a set screw is tightened to hold it
• Spherical O.D. for housings with a matching spherical bore
• Basic dynamic load rating Cr 9.55kN and static rating C0r 4.8kN
• Allowable rotating speed 6,800rpm (standard value)

Key specifications

Fitting and use

Fit the collar against the inner ring so the eccentric surfaces engage, then tighten the set screw in the collar.

The spherical O.D. seats in a housing with a matching spherical bore.

Choosing the right option

If you need another shaft size, the related pages below list the other sizes in this range.

Metric bores are in mm: match the bore to the shaft you have.
