FYH SB208-24 Insert Bearing, 1 1/2 in Bore, Set Screw, 80 mm O.D.
Available

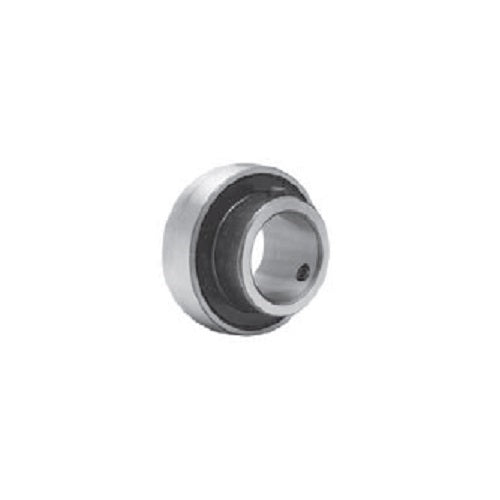

The FYH SB208-24 is a set screw insert bearing with a 1 1/2 in bore (38.1 mm). It measures 80 mm (3.15 in) O.D. by 34 mm (1.339 in) inner ring width, with a basic dynamic load rating of 29.1 kN and a static rating of 17.8 kN.
It has two set screws, a spherical O.D. and a narrow inner ring. Its load ratings are in the Model Details and are the same as the UC of the same number. It belongs to the light duty SB series.
Where this product is used
- Replacement insert for a plummer block or pillow block unit
- Replacement insert for flange and take-up housings with a matching spherical bore
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Set screws spaced 120 degrees apart lock the insert to a 1 1/2 in shaft
- Spherical O.D. for housings with a matching spherical bore
- One-piece seal and slinger design, supplied pre-lubricated with FYH grease
- Basic dynamic load rating Cr 29.1 kN and static rating C0r 17.8 kN
- Allowable rotating speed 3,300 rpm (standard value)
Key specifications

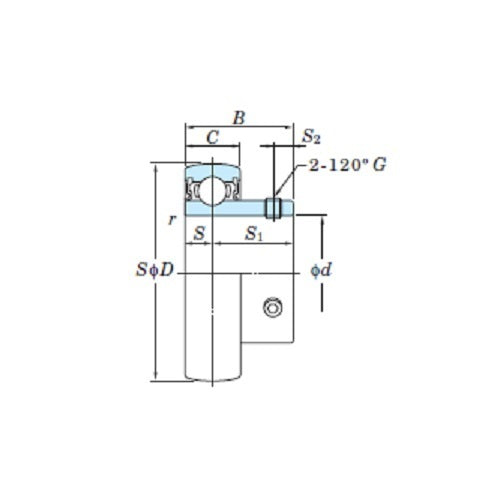

| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with set screws and spherical O.D. |
| Model | SB208-24 |
| Bore diameter d | 38.1 mm (1 1/2 in) |
| Outer diameter D | 80 mm (3.15 in) |
| Inner ring width B | 34 mm (1.339 in) |
| Outer ring width C | 18 mm (0.709 in) |
| Locking | Set screws, spaced 120 degrees apart |
| Outer ring | Spherical O.D. |
| Seal | One-piece seal and slinger |
| Lubrication | Supplied pre-lubricated with FYH grease |
| Duty | Light |
| Set screw thread | 5/16-24UNF |
| Basic dynamic load rating Cr | 29.1 kN |
| Basic static load rating C0r | 17.8 kN |
| Factor f0 | 14 |
| Allowable rotating speed (standard value) | 3,300 rpm |
| Mass | 0.6 kg |
| Brand | FYH (FYH Inc., Japan) |
Selecting the right option
This page is for the single model SB208-24, with a 1 1/2 in bore. If you need another shaft size, the related pages below list the other sizes in this range.
Imperial (inch) bores are in fractions of an inch; the Model Details give the size in mm with the inch size in brackets: match the bore to the shaft you have.
The catalogue offers the SB series in re-lube and sealed-for-life styles. This model number does not show the style, so ask AIMS first if re-lubrication matters.
Fitting and use
Check the load and speed against the catalogue figures in the Model Details before ordering, and apply a suitable safety factor. The allowable rotating speed in the catalogue is a standard value: it falls to 80% for units fitted with covers, and a loose fit between shaft and inner ring reduces it further.
Tighten the set screws once the insert is in position on the shaft.
The spherical O.D. seats in a housing with a matching spherical bore. Ask AIMS to confirm the housing for your insert before ordering.
If you are unsure which insert suits a shaft and housing, send AIMS the part numbers or sizes and we will confirm the fit.
