FYH UC204L2 Insert Bearing, 20 mm Bore, Double Seal (L2), Set Screw, 47 mm O.D.

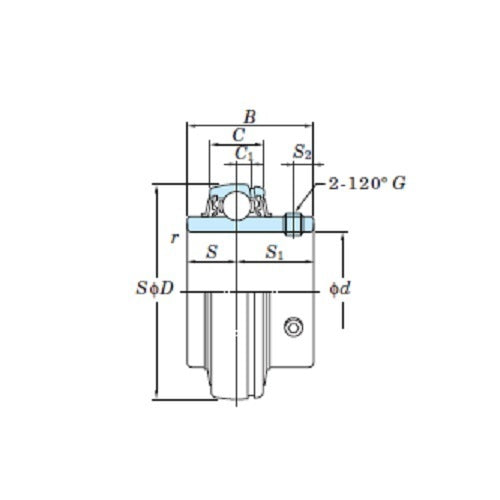

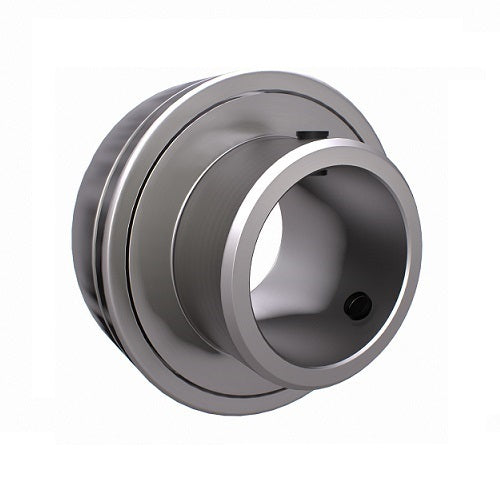

The FYH UC204L2 is a set screw insert bearing with a 20 mm bore. It measures 47 mm O.D. by 31 mm inner ring width, with a basic dynamic load rating of 12.8 kN and a static rating of 6.65 kN.

The L2 in the part number marks the double seal type (the catalogue table marks UC201 to UC205 as double seal type). The UC insert has a wide inner ring with set screws and a spherical O.D. for a housing with a matching spherical bore.

Where this product is used

• Replacement insert for a plummer block or pillow block unit
• Replacement insert for flange and take-up housings with a matching spherical bore
• Conveyor rollers, drive shafts and idler stations
• Fans, blowers and pumps
• Agricultural, construction and general industrial machinery

Features

• Set screws spaced 120 degrees apart lock the insert to a 20 mm shaft
• Spherical O.D. for housings with a matching spherical bore
• Double seal type (L2), supplied pre-lubricated with FYH grease
• Basic dynamic load rating Cr 12.8 kN and static rating C0r 6.65 kN

Key specifications

Selecting the right option

This page is for the single model UC204L2, with a 20 mm bore. If you need another shaft size, the related pages below list the other sizes in this range.

Metric bores are in mm: match the bore to the shaft you have.

For the standard seal version of this size, see the UC200 series pages below. The catalogue marks UC201 to UC205 as the double seal type (L2) and gives no separate allowable rotating speed for the L2 type.

Fitting and use

Check the load against the catalogue figures in the Model Details before ordering, and apply a suitable safety factor.

Tighten the set screws once the insert is in position on the shaft.

Match the insert to a housing with the same size number: the spherical O.D. seats in a matching spherical housing bore.

If you are unsure which insert suits a shaft and housing, send AIMS the part numbers or sizes and we will confirm the fit.
