Garrick Herbert DS13 Drill Bit Sharpener 13mm Capacity
Available

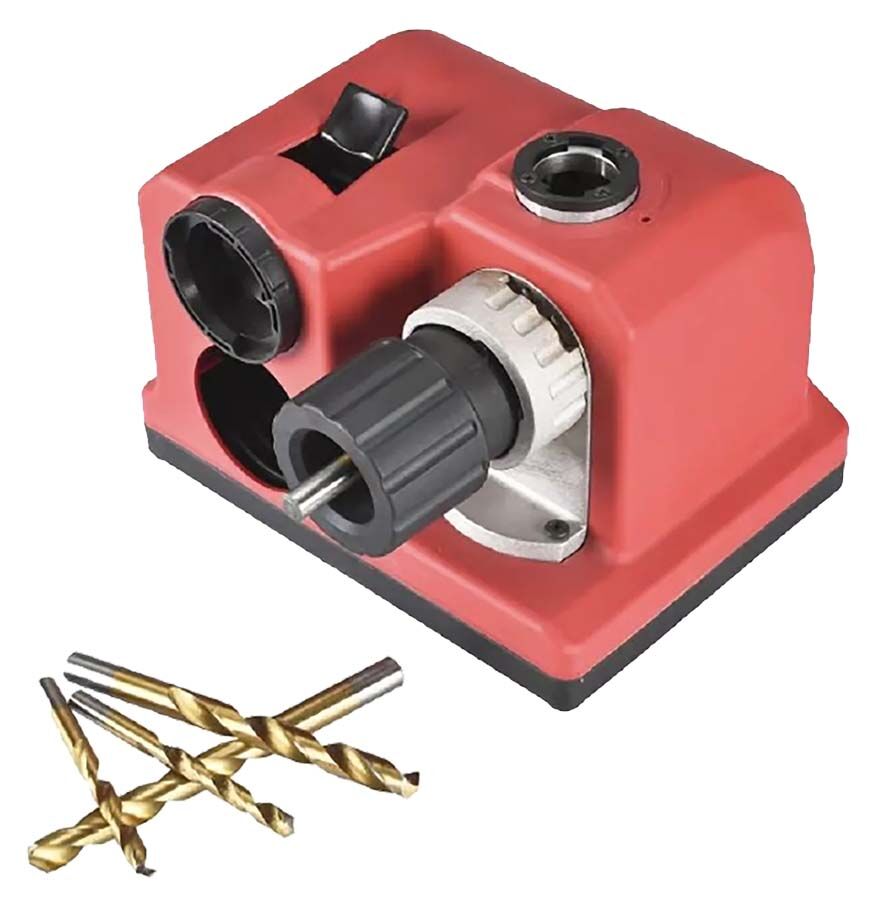

The Garrick DS13 is a compact, hand operated drill bit sharpener for HSS drill bits from 3 mm to 13 mm (1/8" to 1/2"), with a recommended minimum drill length of 85 mm. It uses a CBN wheel for a superior grind finish and can sharpen metric and imperial two-flute drills of unlimited length.
It has a single chuck holding system, can do split point sharpening, and grinds a fixed 118 degree point. The motor is 80 W, 4200 rpm, 240 V, in a tough plastic body.
Where this product is used
- Resharpening HSS twist drills in workshops and fabrication shops.
Features
- Sharpens HSS drill bits 3 mm to 13 mm (1/8" to 1/2")
- Recommended minimum drill length 85 mm
- CBN wheel for a superior grind finish
- Single chuck holding system
- Metric and imperial drill bits
- Two flute drills of unlimited length
- Capable of split point sharpening
- Fixed 118 degree drill point
- Hand operated, user friendly
- 80 W, 4200 rpm, 240 V motor
- Tough plastic construction
Key specifications
| Specification | Detail |
|---|---|
| Model | DS13 |
| Drill capacity | HSS, 3 mm to 13 mm (1/8" to 1/2") |
| Minimum drill length | 85 mm (recommended) |
| Wheel | CBN |
| Point angle | 118 degrees, fixed |
| Motor | 80 W, 4200 rpm, 240 V |
| Construction | Tough plastic |
Selecting the right option
Check the drill is HSS, between 3 mm and 13 mm, and at least 85 mm long.
