Garrick RG12E Roll Grooving Machine, up to 12" NB (750 W)
Available
Garrick roll grooving machines are compact, stable machines with a powerful yet quiet motor and fine adjustment for groove depth and regulation. Each includes a pipe roller V stand.

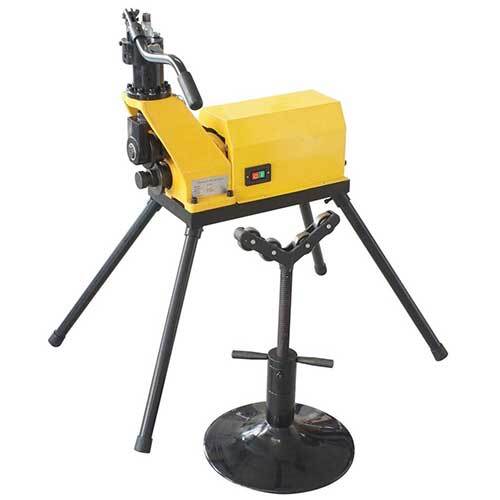

The RG6C (550 W, 24 rpm) grooves Sch10 1-1/4" to 6" and Sch40 1-1/4" to 3". The RG12E (750 W, 24 rpm) grooves Sch10 2" to 12" and Sch40 2" to 6".
Where this product is used
- Roll grooving pipe for grooved couplings.
Features
- Powerful yet quiet motor
- Fine adjustment for groove depth and regulation
- Compact and very stable machine design
- Includes a pipe roller V stand
Key specifications
| Model | Grooving capacity | Electric motor |
|---|---|---|
| RG6C | Sch10 1-1/4" to 6", Sch40 1-1/4" to 3" | 550 W, 24 rpm |
| RG12E | Sch10 2" to 12", Sch40 2" to 6" | 750 W, 24 rpm |
Selecting the right option
Choose the model by the largest pipe size and schedule you groove.
Related products
For grooving with an attachment instead see the RG916 and RG12A.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Garrick Roll Grooving Machine: 12
SKU: A0127557 | Model: RG12E
Garrick RG12E roll grooving machine, 750 W motor, grooves Sch10 2" to 12", Sch40 2" to 6". Includes a pipe roller V stand.
