Description
Description
Descriptions
- Gates Multi-Speed belt provides top performance on variable speed drives
- It adjusts itself to the pulley groove without difficulty, providing a wide range of speeds and speed ratios
- In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request
Construction
- Narrow cross-section
- Engineered notch contour increases flexibility. The notches ensure maximum heat dispersion, considerably decreasing running temperatures.
- Flex-Bonded tensile cords
- Strong transverse rigidity offers high resistance to distortion of the belt in the pulley. This results in even load distribution and wear reduction.
- Uniform composition and thickness of the undercord ensure smooth and silent running
- Combination of these construction features gives maximum speed adjustment
Advantages
- Maximum range of speed changes
- High load-carrying capacity
- Smooth machine operation
- Exceptionally long belt life
Specifications
Specifications
Dimensions
- Standardized Section (ISO R 1604): W20
- Top Width (mm): 21 mm
- Pitch Length: 1000 mm
- Angle: 26°
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

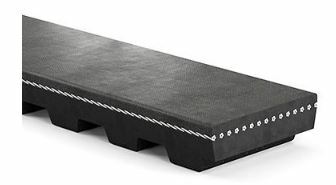

Gates 1000W20 (9802-10024) Multi-Speed (Variable Speed) Belt
Gates 1000W20 (9802-10024) Multi-Speed (Variable Speed) Belt
SKU: A0019422
- Wide Range
- Reliable Services
- Proven Trust
Out of stock
Designed for variable speed drives, the Gates 1000W20 Multi-Speed Belt adjusts seamlessly to pulley grooves. It offers a broad range of speeds and ratios, with a 21mm top width and 1000mm pitch length. This belt ensures smooth operation and longevity.
