Descriptions

• Gates Quad-Power® 4 Powerband® offers a stable position in the pulleys and a smooth-running solution for drives where single belts vibrate and rolloffer
• It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately
• Quad-Power® 4 Powerband® is easy to install and offers a high resistance to vibrations
• The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C

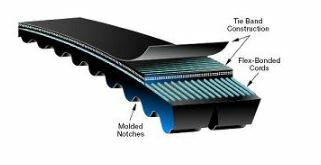

Construction

• Narrow cross-section
• Moulded notches
• Notch depth is in proportion to the cross-section to ensure perfect stability
• Fibre-loaded compound for improved belt stability
• Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Reduce wrapped belt drive width up to 50%
• Increase efficiency up to 3% offer wrapped belts
• Use smaller diameter pulleys than wrapped belts
• Moulded notches reduce and evenly distribute thermal and bending stresses
• Reduce drive maintenance
• Match free system: all sizes meet Gates UNISET & V80® tolerances, can be installed without matching
• Back idlers can be used

Temperature Range

• Range: -50°C to +130°C

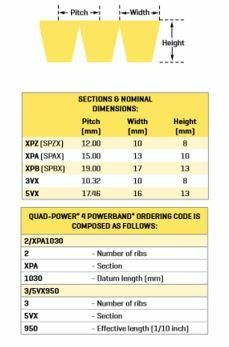

Dimensions

• Section: XPA
• Pitch: 15 mm
• Width: 13 mm
• Height: 10 mm
• Datum Length: 1500 mm
• Number of Ribs: 2
