** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **
Descriptions
- PowerGrip® HTD® 8M and 14M belts are used in high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.
- PowerGrip® HTD® 3M and 5M belts are suitable for domestic appliances, once machines, electric hand tools and for applications in the processing and chemical industry.
Construction
- Curvilinear (round) tooth form improves stress distribution and allows higher overall loading compared to trapezoidal tooth forms
- Fibreglass tensile cords
- Tough nylon facing protects and reinforces the tooth surface
- Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt
Advantages
- No slippage. PowerGrip® HTD® belt teeth mesh smoothly with pulley grooves, reducing speed variations
- Wide speed range, 3M and 5M are designed for belt speeds up to 80m/s
- Constant angular velocity
- Economical operation. No lubrication needed, no need for adjustment due to stretch and wear.
- High mechanical efficiency. The belt construction minimises heat build-up and since friction is not required to transmit the load, belt tensions are reduced
- Most 14M PowerGrip® HTD® belts now meet the ISO 9563 static conductive standard
- Maintenance free
- Back idlers can be used
Temperature Range
- Range: -30°C to +100°C
Specifications
Specifications
Dimensions
- Section: 20M
- Pitch Length: 3400 mm
- Pitch: 20 mm
- Belt Width: 170 mm
- T: 8.4 mm
- B: 13.2 mm
- Teeth: 170
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

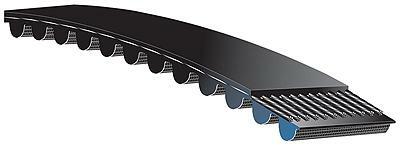

Gates 3400-20M-170 PowerGrip HTD Belt Classical Section (9293-0718)
Gates 3400-20M-170 PowerGrip HTD Belt Classical Section (9293-0718)
SKU: A0024951
- Wide Range
- Reliable Services
- Proven Trust
Out of stock
The Gates 3400-20M-170 PowerGrip HTD Belt is designed for high-performance use in industries such as machine tool, paper, and textile. With dimensions of 3400 mm pitch length and 170 mm belt width, it ensures durability and low maintenance. Its curvilinear tooth form enhances stress distribution for higher loading.
