Double Sided V-Belt - Classical Section - Heavy Duty
- Gates Hi-offer II Dubl-V belt is characterised by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave cover for extended protection.
- It is the ideal solution for "serpentine" drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt
Construction
- Classical cross-section
- Unique recessed top and bottom
- Fibre-loaded compound for improved belt stability

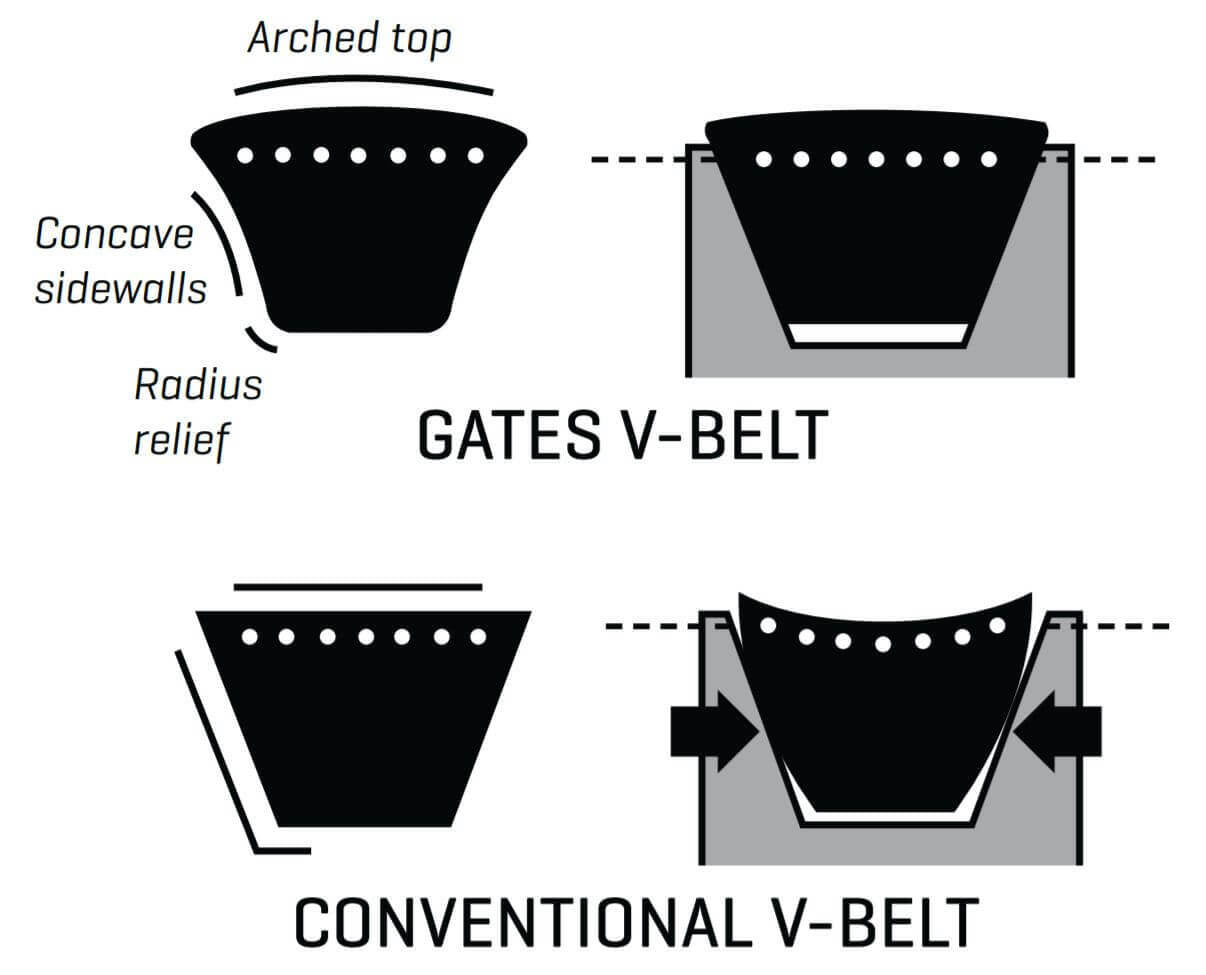

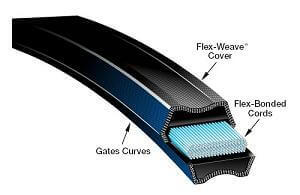

- Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
- Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Premium performance
- offer transmission from both sides of the belt
- Premium performance
- Excellent performance/cost ratio
- Suitable for dirty/dusty environments
- Match free system: meets Gates V80 tolerances, can be installed without matching
- Tolerates mild clutching or drive slip
Temperature Range
- Range: -35°C to +60°C
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gates Hi-Power II Double V Belt - AA Section
Gates Hi-Power II Double V Belt - AA Section
SKU: A0017917
- Wide Range
- Reliable Services
- Proven Trust
Out of stock
The Gates Hi-Power II Double V Belt is designed with flex-bonded tensile cords and a double-V profile. It measures 13mm in width and 51 inches in length, making it suitable for 'serpentine' drives. The FlexWeave® cover offers extended protection.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Double Sided V-Belt - Classical Section - Heavy Duty
- Gates Hi-offer II Dubl-V belt is characterised by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave cover for extended protection.
- It is the ideal solution for "serpentine" drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt
Construction
- Classical cross-section
- Unique recessed top and bottom
- Fibre-loaded compound for improved belt stability
- Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
- Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Premium performance
- offer transmission from both sides of the belt
- Premium performance
- Excellent performance/cost ratio
- Suitable for dirty/dusty environments
- Match free system: meets Gates V80 tolerances, can be installed without matching
- Tolerates mild clutching or drive slip
Temperature Range
- Range: -35°C to +60°C
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gates Hi-Power II Double V Belt - AA Section
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Gates Hi-Power II Double V Belt is designed with flex-bonded tensile cords and a double-V profile. It measures 13mm in width and 51 inches in length, making it suitable for 'serpentine' drives. The FlexWeave® cover offers extended protection. |
Regular price
From $75.14
Sale price
From $75.14
Regular price
Unit price
/per
| Gates | Double Sided V-Belt - Hi-Power II Dubl-V Belts |
Length (inch)
60,85,90,96,105,112,120,51,55,68,73,92,128,148
V-Belt Code
AA60,AA85,AA90,AA96,AA105,AA112,AA120,AA51,AA55,AA68,AA73,AA92,AA128,AA148FP
|
Choose your option
Gates Hi-Power II Double V Belt - AA Section
Gates Hi-Power II Double V Belt - AA Section
SKU: A0017917
Out of stock
The Gates Hi-Power II Double V Belt is designed with flex-bonded tensile cords and a double-V profile. It measures 13mm in width and 51 inches in length, making it suitable for 'serpentine' drives. The FlexWeave® cover offers extended protection.
