** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **

Descriptions

• Long Length belting is a special alternative to the timing chain for reverse positioning drives
• Open-end synchronous belting is suitable for linear movements (automated doors, automated warehouse conveyors and elevators), accurate positioning (machine tools, x-y coordinate machines) and reversal drives (computers, printers and office equipment)
• Gates Long Length belting is available in various sizes, constructions and tooth designs to cover a wide range of loads, speeds and applications

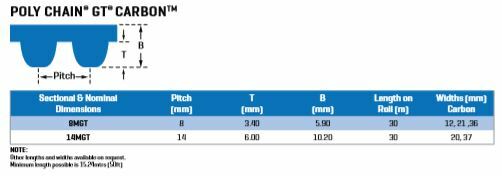

Construction (Poly Chain GT Carbon)

• Carbon fibre tensile cord
• Polyurethane teeth and backing
• Fabric reinforced teeth

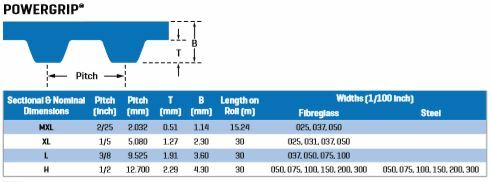

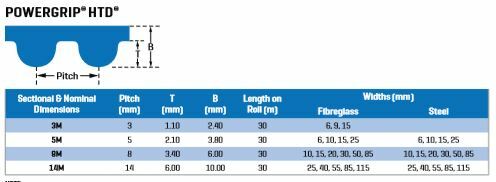

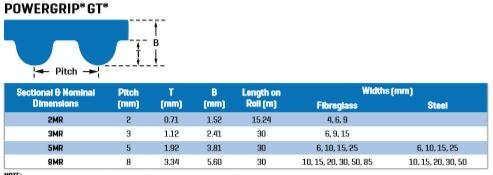

Construction (PowerGrip GT, PowerGrip HTD, PowerGrip)

• Fibreglass or steel tensile cords
• Rubber teeth and backing
• Nylon tooth facing

Advantages

• High positioning accuracy, making the belt ideally suited for applications with repetitive movements
• High power transmission due to the use of sophisticated materials and tooth profiles
• Positive power transmission with low axial load
• Length stability due to the use of high modulus tensile members
• Easy to attach with clamping fixtures
• Low maintenance
• No environmental pollution due to lubricants

Temperature Range

• Range (Polychain): -54°C to +85°C
• Range (Powergrip): -30°C to + 100°C

Dimensions

• Section: H
• Roll Length: 30 m
• Cord Type: Fibreglass
• Pitch: 12.7 mm
• Belt Width: 50 mm
• T: 2.29 mm
• B: 4.3 mm
