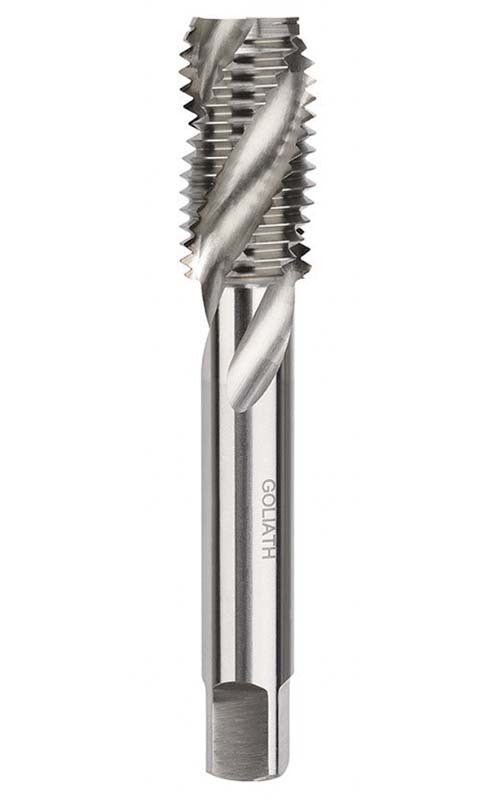

Goliath A73FF3 N0.8 x 0.43mm BA Spiral Flute Machine Tap HSS-Co5
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath BA Spiral Flute Machine Tap HSS-Co5, available in 9 size options: N0.0, N0.1, N0.10, N0.2, N0.3, N0.4, N0.5, N0.6 and 1 more.
Goliath HSS-Co5 cobalt spiral flute machine taps cut internal threads in blind holes at speed, ejecting chips upward for clean, uninterrupted cutting.
Where this product is used
Goliath spiral flute machine tap products are used across engineering workshops, production machining, and industrial maintenance programs.
- Tapping blind holes at machine speeds where chip ejection is critical.
- CNC and production tapping of ductile materials including aluminium, mild steel, and stainless steel.
- High-speed internal threading where chip packing would otherwise cause tap breakage.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS-Co5 Cobalt |
Selecting the right option
Spiral flute taps suit blind-hole tapping — the spiral ejects chips upward, preventing chip packing. HSS-Co5 cobalt grade suits stainless steel, titanium, and difficult materials at machine speeds. Use a titanium nitride (TiN) coated tap for improved surface finish and tool life in production runs.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath BA Spiral Flute Machine Tap HSS-Co5: N0.8
SKU: A0174400 | Model: A73FF3
Size N0.8. Goliath BA Spiral Flute Machine Tap HSS-Co5
HSS-Co Spiral Flute Taps
Spiral Flute taps are designed primarily for machine tapping of blind holes.
They are used to the best advantage in materials that produce long continuous chips.
The right hand spiral forces the swarf out of the hole and prevents the chips from clogging at the bottom of the hole or in the flutes, which could cause tap breakage or spoiled threads.
BA (British Association)
In 1884 the British Association for the Advancement of Science adopted a thread form and series, primarily for use in precision equipment.
It was inspired by one used in the Swiss watch and clock industry, and was formerly sometimes called the Swiss Small Screw Thread System; but is now just referred to as the BA series.
Like the Whitworth thread, it has a rounded root and crest, but the included angle is 47.5°.
Despite the date of origin and the British sponsorship, the BA is a metric series. Not only is it based on the metre, but the thread frequency is specified in terms of round numbers in the pitch sequence, with threads per metre allowed to fall where it may.
Manufactured from HSS-Co5.
