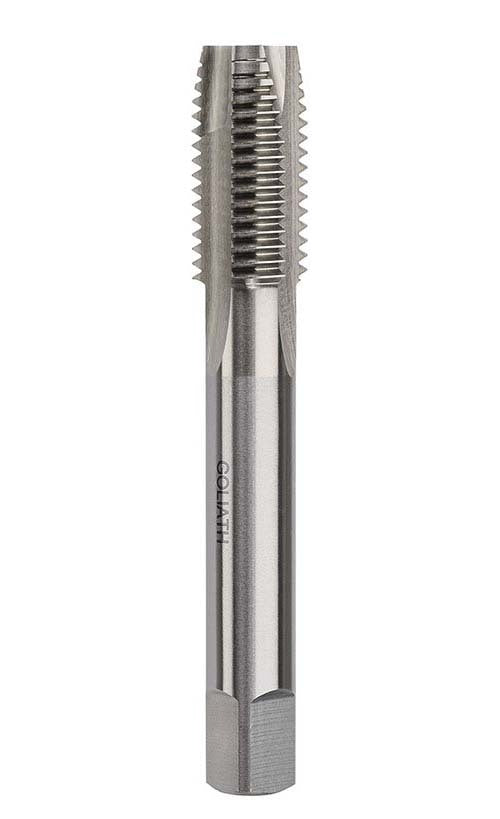

Goliath No. 0 x 1.00mm BA Spiral Point (Gun) HSS-Co5 Bright Tap
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath BA Spiral Point (Gun) HSS-Co5 Bright Tap, available in 9 diameter options: No. 0, No. 1, No. 2, No. 3, No. 4, No. 5, No. 6, No. 7 and 1 more.
Goliath HSS-Co5 cobalt spiral point gun taps cut internal threads in through holes at machine speeds, pushing chips ahead of the cutting edge.
Where this product is used
Goliath spiral point machine tap products are used across engineering workshops, production machining, and industrial maintenance programs.
- High-speed tapping of through holes where chips can be pushed ahead of the cutting edge.
- CNC and production threading in mild steel, aluminium, and non-ferrous materials.
- Production environments requiring fast, efficient internal thread cutting in through-hole applications.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS-Co5 Cobalt |
Selecting the right option
Spiral point (gun) taps suit through-hole tapping — chips are pushed ahead of the cut, not back through the hole. HSS-Co5 cobalt grade suits harder materials and machine-speed production tapping. Do not use gun taps in blind holes — chips have nowhere to go and will pack, causing breakage.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath BA Spiral Point (Gun) HSS-Co5 Bright Tap: No. 0
SKU: A0199910 | Model: A65FE2SP
This is the diameter No. 0 option of the Goliath BA Spiral Point (Gun) HSS-Co5 Bright Tap. Key details for this option: thread form type BA, drill diameter 5.1mm, length overall 66mm.
Goliath BA Spiral Point (Gun) HSS-Co5 Bright Tap
HSS-Co (Cobalt) Bright Finish BA Spiral Point Machine Tap.
HSS-Co Spiral Point (Gun Nose) Taps.
Spiral point taps, also known as 'Gun nose taps', have straight flutes supplemented by angular cutting faces at the lead.
The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes.
This allows a stronger cross-section throughout the tap.
British Association thread form - in 1884 the British Association for the Advancement of Science adopted a thread form and series, primarily for use in precision equipment.
It was inspired by one used in the Swiss watch and clock industry, and was formerly sometimes called the Swiss Small Screw Thread System; but is now just referred to as the BA series.
Like the Whitworth thread, it has a rounded root and crest, but the included angle is 47.5º.
Despite the date of origin and the British sponsorship, the BA is a metric series.
Not only is it based on the metre, but the thread frequency is specified in terms of round numbers in the pitch sequence, with threads per metre allowed to fall where it may.
Manufactured from HSS-Co5, this modern design tap uses straight flutes supplemented by angular cutting faces at the point to produce a fine finish on the threads.
Shallower flutes achieve a stronger cross section allowing the tap to withstand greater cutting forces.
