Goliath 1/16" x 60 TPI BSW Straight Flute Intermediate HSS Tap - A05AB3
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath British Standard Whitworth Intermediate HSS Tap, available in 22 diameter options: 1/16", 1/8", 1/4", 1/2", 1", 1-1/8", 1-1/4", 1-3/8" and 14 more.
Goliath BSW tap and die sets cut British Standard Whitworth threads, the original imperial thread standard, for maintenance and repair of older British equipment.
Where this product is used
Goliath bsw tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting British Standard Whitworth threads for repair and maintenance of older British equipment.
- Heritage engineering, classic vehicle restoration, and vintage machinery maintenance.
- Toolrooms holding the full range of imperial British thread standards.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
BSW (Whitworth) sets suit heritage engineering and vintage machinery maintenance. Confirm the thread standard is BSW — Whitworth and BSF are different thread forms with different pitches. Select the set covering the size range required for your maintenance program.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

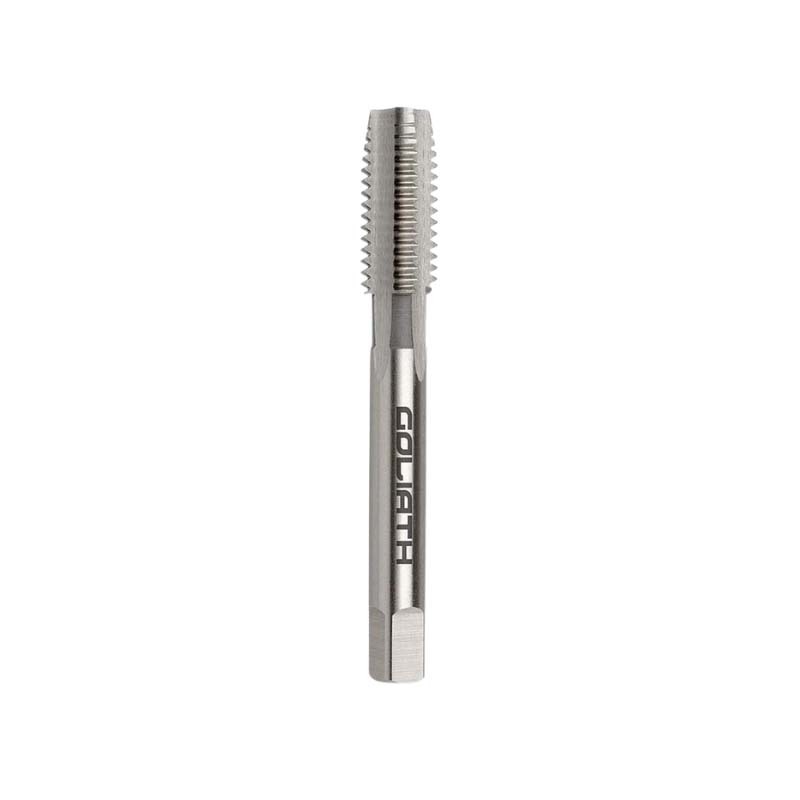

Goliath British Standard Whitworth Intermediate HSS Tap: 1/16"
SKU: A0197571 | Model: A05AB3
Diameter 1/16". Goliath British Standard Whitworth Intermediate HSS Tap
HSS Bright Finish BSW Hand and Machine Intermediate Tap.
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.
British Standard Whitworth angle of thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
This thread form was developed by Sir Joseph Whitworth in 1841.
The thread form has rounded roots and crests and is specified in BS84:1956.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
