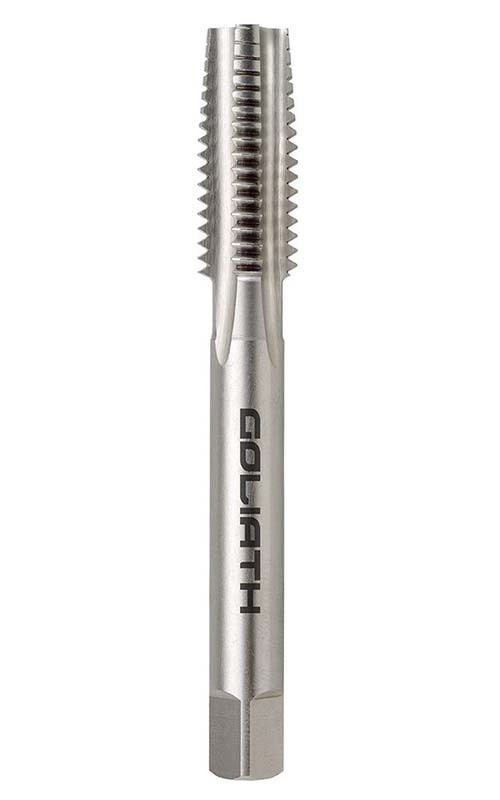

Goliath A07AA3L Straight Flute Tap, 1/8"
Available
The Goliath British Standard Whitworth Taper Left Hand Tap is a left hand HSS bright finish BSW hand and machine taper tap. These general-purpose taps are ideal for creating new threads in a wide variety of materials. Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
British Standard Whitworth angle of thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads. This thread form was developed by Sir Joseph Whitworth in 1841.
Where this product is used
- Suits work in steel, aluminium, cast iron, stainless steel and plastics
Features
- HSS Straight Flute Short Machine and Hand Taps
- The thread form has rounded roots and crests and is specified in BS84:1956
- Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes
- Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use
- LEFT HAND HSS Bright Finish BSW Hand and Machine Taper Tap
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Straight Flute Tap |
| Lead | Taper |
| Material | HSS |
| Finish | Bright |
Choosing the right option
The options differ in diameter, drill diameter, threads per inch (tpi) and number of flutes. Each has its own part number.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | A07AA3L | A0197637 |
| 1/4" | B11AA3L | A0197640 |
| 1/2" | B15AA4L | A0197644 |
| 1" | C20AA4L | A0197649 |
| 3/16" | A09AA3L | A0197639 |
| 3/8" | B13AA4L | A0197642 |
| 3/4" | C18AA4L | A0197647 |
| 5/32" | AK08AA3L | A0197638 |
| 5/16" | B12AA4L | A0197641 |
| 5/8" | B17AA4L | A0197646 |
| 7/16" | B14AA4L | A0197643 |
| 7/8" | C19AA4L | A0197648 |
| 9/16" | B16AA4L | A0197645 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath British Standard Whitworth Taper Left Hand Tap: 1/8"
SKU: A0197637 | Model: A07AA3L
Goliath 1/8" x 40 TPI BSW Taper Left Hand HSS Bright Tap - A07AA3L. Diameter 1/8, drill diameter 2.55mm and threads per inch (tpi) 40. HSS Straight Flute Short Machine and Hand Taps.
