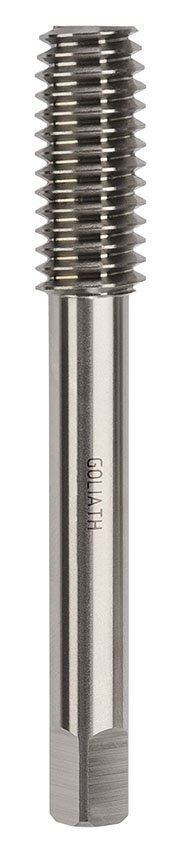

Goliath BSF Fluteless (Roll Form) HSS-Co5 Bright Tap

• HSS-Co (Cobalt) Bright Finish BSF Fluteless Machine Tap.
• HSS Fluteless (Roll Form) Taps.
• Fluteless taps are also referred to as "Roll Form" or "Thread Flow" taps.
• Unlike standard taps, fluteless taps create internal threads by pressure deformation, rather than by material removal.
• As a result, no chips are formed as no material is removed.
• The thread is formed by the tap in the ductile material creating threads that have a smoother surface and greater tensile strength under dynamic stress than cut threads.
• It is essential to use a high quality lubricating fluid when using fluteless taps.
• Materials with a minimum elongation of 5% and a tensile strength no greater than 1,000 N/mm2 are suitable for thread forming.
• British Standard Fine thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter).
• The thread form was first introduced in 1908 and is specified in BS84:1956.
• When used on external threads this series has a greater tensile stress area than coarse threads of the same size.
• Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
• Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
• Manufactured from HSS this fluteless tap is designed for use in medium tensile materials and is for hand or general machine use.
• IMPORTANT - Fluteless Taps use different tapping drill sizes than standard taps.
