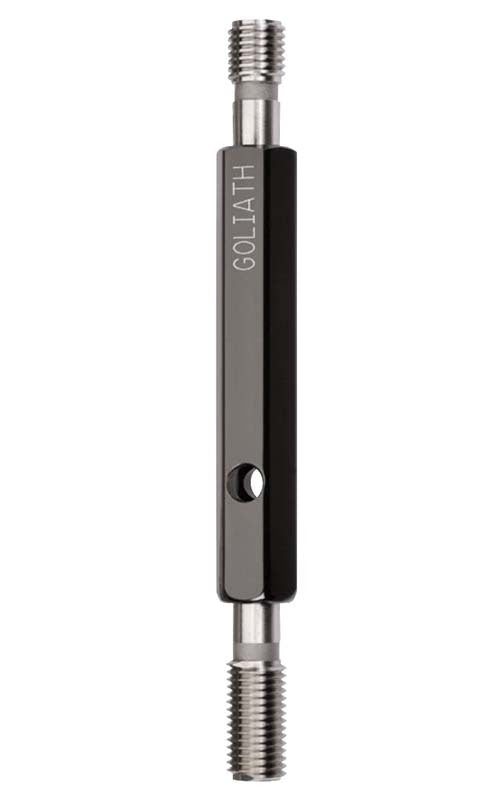

Goliath BSF Thread Plug Gauge Go/No-Go 3/4" x 12 TPI
Out of stock
The Goliath BSF Thread Plug Gauge comes in several options that differ in diameter and threads per. Supplied with Go at one end and No-Go at the other. Durable high precision gauge. Screw Plug Gauge GO controls the workpiece's internal thread's pitch diameter and major diameter's maximum physical size.
Where this product is used
- Used in engineering, quality control, manufacturing and construction
Features
- BSF - British Standard Fine
- Standard tolerance Medium
- Supplied with manufacturer inspection certificate
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Plug Gauge |
| Gauge type | Go/No-Go |
Choosing the right option
Each option has its own part number.
The lead time is approximately 6 to 8 weeks. A calibration certificate is included. A lead time applies to all gauges. These goods are made to order and are non-refundable.
| Option | Part number | SKU |
|---|---|---|
| 1 | 3030-1P | A0175290 |
| 1/2 | 3030-1/2P | A0175286 |
| 1/4 | 3030-1/4P | A0175282 |
| 3/4 | 3030-3/4P | A0175288 |
| 3/8 | 3030-3/8P | A0175284 |
| 3/16 | 3030-3/16P | A0175281 |
| 5/8 | 3030-5/8P | A0175287 |
| 5/16 | 3030-5/16P | A0175283 |
| 7/8 | 3030-7/8P | A0175289 |
| 7/16 | 3030-7/16P | A0175285 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath BSF Thread Plug Gauge: 3/4
SKU: A0175288 | Model: 3030-3/4P
Goliath BSF Thread Plug Gauge Go/No-Go 3/4" x 12 TPI, part number 3030-3/4P. Diameter 3/4", threads per 12" and thread type BSF. BSF - British Standard Fine.
