Goliath 1/8" x 40 TPI BSW Fluteless HSS-Co5 Bright Tap - B07AG
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath BSW Fluteless (Roll Form) HSS-Co5 Bright Tap, available in 7 diameter options: 1/8", 1/4", 1/2", 3/16", 3/8", 5/32", 5/16".
Goliath BSW tap and die sets cut British Standard Whitworth threads, the original imperial thread standard, for maintenance and repair of older British equipment.
Where this product is used
Goliath bsw tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting British Standard Whitworth threads for repair and maintenance of older British equipment.
- Heritage engineering, classic vehicle restoration, and vintage machinery maintenance.
- Toolrooms holding the full range of imperial British thread standards.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS-Co5 Cobalt |
Selecting the right option
BSW (Whitworth) sets suit heritage engineering and vintage machinery maintenance. Confirm the thread standard is BSW — Whitworth and BSF are different thread forms with different pitches. Select the set covering the size range required for your maintenance program.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

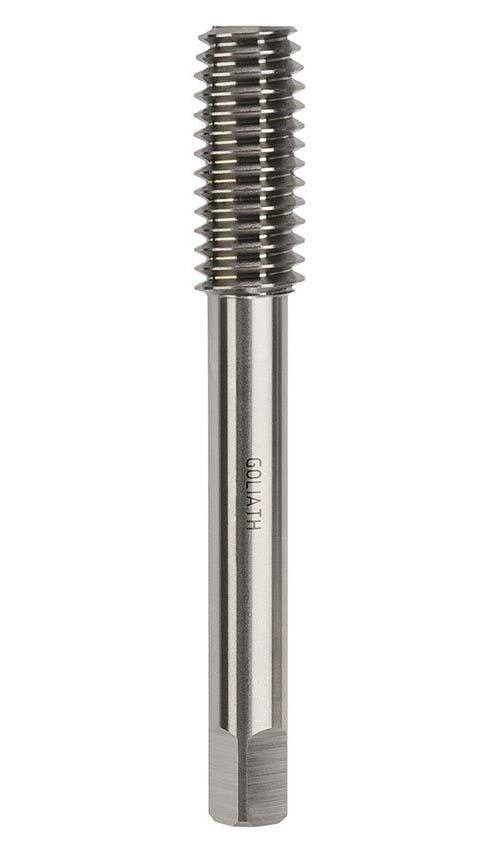

Goliath BSW Fluteless (Roll Form) HSS-Co5 Bright Tap: 1/8"
SKU: A0197717 | Model: B07AG
Diameter 1/8". Goliath BSW Fluteless (Roll Form) HSS-Co5 Bright Tap
HSS-Co (Cobalt) Bright Finish BSW Fluteless Machine Tap.
HSS Fluteless (Roll Form) Taps.
Fluteless taps are also referred to as "Roll Form" or "Thread Flow" taps.
Unlike standard taps, fluteless taps create internal threads by pressure deformation, rather than by material removal.
As a result, no chips are formed as no material is removed.
The thread is formed by the tap in the ductile material creating threads that have a smoother surface and greater tensile strength under dynamic stress than cut threads.
It is essential to use a high quality lubricating fluid when using fluteless taps.
Materials with a minimum elongation of 5% and a tensile strength no greater than 1,000 N/mm2 are suitable for thread forming.
British Standard Whitworth angle of thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
This thread form was developed by Sir Joseph Whitworth in 1841.
The thread form has rounded roots and crests and is specified in BS84:1956.
Manufactured from HSS this fluteless tap is designed for use in medium tensile materials and is for hand or general machine use.
IMPORTANT - Fluteless Taps use different tapping drill sizes than standard taps.
