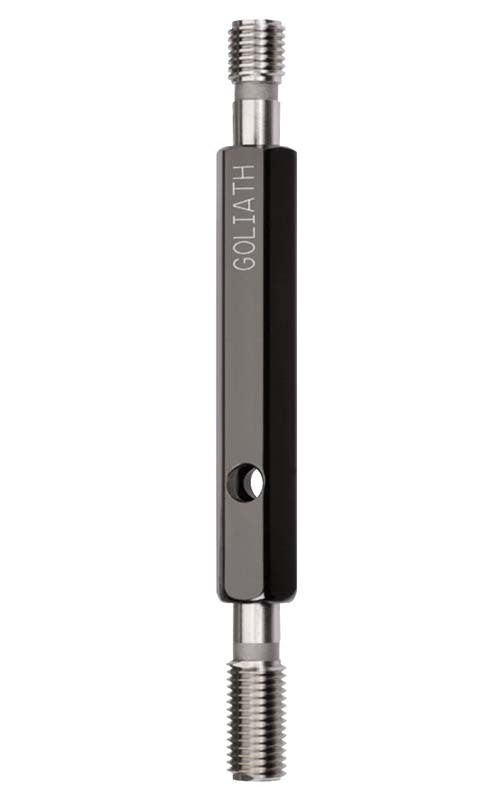

Goliath BSW Thread Plug Gauge Go/No-Go 1-1/4" x 7 TPI
Out of stock
The Goliath BSW Thread Plug Gauge comes in several options that differ in diameter and threads per. Supplied with Go at one end and No-Go at the other. Durable high precision gauge. Screw Plug Gauge GO controls the workpiece's internal thread's pitch diameter and major diameter's maximum physical size.
Where this product is used
- Used in engineering, quality control, manufacturing and construction
Features
- BSW - British Standard Whitworth
- Standard tolerance Medium
- Supplied with manufacturer inspection certificate
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Plug Gauge |
| Gauge type | Go/No-Go |
Choosing the right option
Each option has its own part number.
The lead time is approximately 6 to 8 weeks. A calibration certificate is included. A lead time applies to all gauges. These goods are made to order and are non-refundable.
| Option | Part number | SKU |
|---|---|---|
| 1 | 3028-1P | A0175242 |
| 1-1/2 | 3028-1.1/2P | A0175245 |
| 1-1/4 | 3028-1.1/4P | A0175244 |
| 1-1/8 | 3028-1.1/8P | A0175243 |
| 1-3/4 | 3028-1.3/4P | A0175246 |
| 1/2 | 3028-1/2P | A0175237 |
| 1/4 | 3028-1/4P | A0175233 |
| 1/8 | 3028-1/8P | A0175230 |
| 3/4 | 3028-3/4P | A0175240 |
| 3/8 | 3028-3/8P | A0175235 |
| 3/16 | 3028-3/16P | A0175232 |
| 5/8 | 3028-5/8P | A0175239 |
| 5/16 | 3028-5/16P | A0175234 |
| 5/32 | 3028-5/32P | A0175231 |
| 7/8 | 3028-7/8P | A0175241 |
| 7/16 | 3028-7/16P | A0175236 |
| 9/16 | 3028-9/16P | A0175238 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath BSW Thread Plug Gauge: 1-1/4
SKU: A0175244 | Model: 3028-1.1/4P
Goliath BSW Thread Plug Gauge Go/No-Go 1-1/4" x 7 TPI, part number 3028-1.1/4P. Diameter 1-1/4", threads per 7" and thread type BSW. BSW - British Standard Whitworth.
