***Allow one week to make up set.***

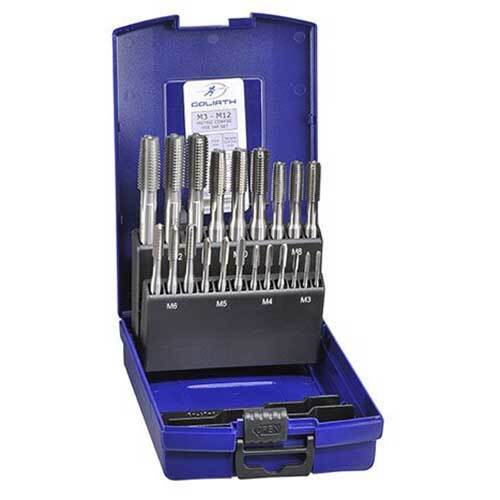

Goliath Metric Coarse Tap Set - HSS

• 21pieces boxed set including taper, intermediate & bottom of each size.

Contents

Title
Qty
3 x 0.5mm MC Taper HSS Tap - Goliath
1
3 x 0.5mm MC Intermediate HSS Tap - Goliath
1
3 x 0.5mm MC Bottoming HSS Tap - Goliath
1
4 x 0.7mm MC Taper HSS Tap - Goliath
1
4 x 0.7mm MC Intermediate HSS Tap - Goliath
1
4 x 0.7mm MC Bottoming HSS Tap - Goliath
1
5 x 0.8mm MC Taper HSS Tap - Goliath
1
5 x 0.8mm MC Intermediate HSS Tap - Goliath
1
5 x 0.8mm MC Bottoming HSS Tap - Goliath
1
6 x 1mm MC Taper HSS Tap - Goliath
1
6 x 1mm MC Intermediate HSS Tap - Goliath
1
6 x 1mm MC Bottoming HSS Tap - Goliath
1
8 x 1.25mm MC Taper HSS Tap - Goliath
1
8 x 1.25mm MC Intermediate HSS Tap - Goliath
1
8 x 1.25mm MC Bottoming HSS Tap - Goliath
1
10 x 1.5mm MC Taper HSS Tap - Goliath
1
10 x 1.5mm MC Intermediate HSS Tap - Goliath
1
10 x 1.5mm MC Bottoming HSS Tap - Goliath
1
12 x 1.75mm MC Taper HSS Tap - Goliath
1
12 x 1.75mm MC Intermediate HSS Tap - Goliath
1
12 x 1.75mm MC Bottoming HSS Tap - Goliath
1

About HSS Straight Flute Short Machine and Hand Taps

• These general-purpose taps are ideal for creating new threads in a wide variety of materials.
• Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.

About Metric Coarse

• The angle of the thread is 60 degrees. The crest is flat and the thread has clearance at the root allowing the external thread and internal thread to engage well.
• A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
• The major diameter of external thread and pitch is specified by a simple numerical value (most commonly measured in millimeters).

About Intermediate Taps

• Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Taper Taps

• Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Bottoming Taps

• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
