***Allow one week to make up set.***

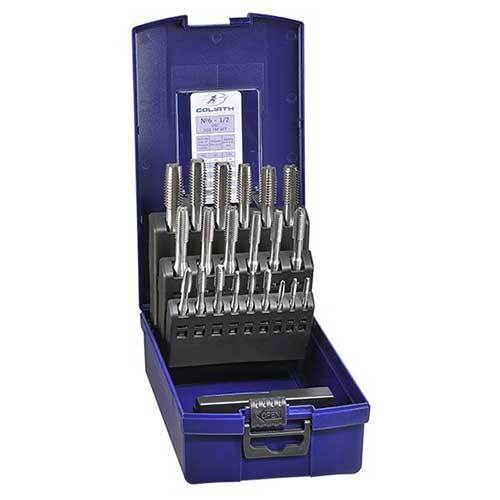

Goliath UNC Tap Set -HSS

• 21pieces boxed set including taper, intermediate & bottom of each size.

Contents

Title
Qty
No 6G x 32 UNC Taper HSS Tap - Goliath
1
No 6G x 32 UNC Intermediate HSS Tap - Goliath
1
No 6G x 32 UNC Bottoming HSS Tap - Goliath
1
No 10G x 24 UNC Taper HSS Tap - Goliath
1
No 10G x 24 UNC Intermediate HSS Tap - Goliath
1
No 10G x 24 UNC Bottoming HSS Tap - Goliath
1
1/4" x 20 UNC Taper HSS Tap - Goliath
1
1/4" x 20 UNC Intermediate HSS Tap - Goliath
1
1/4" x 20 UNC Bottoming HSS Tap - Goliath
1
5/16" x 18 UNC Taper HSS Tap - Goliath
1
5/16" x 18 UNC Intermediate HSS Tap - Goliath
1
5/16" x 18 UNC Bottoming HSS Tap - Goliath
1
3/8" x 16 UNC Taper HSS Tap - Goliath
1
3/8" x 16 UNC Intermediate HSS Tap - Goliath
1
3/8" x 16 UNC Bottoming HSS Tap - Goliath
1
7/16" x 14 UNC Taper HSS Tap - Goliath
1
7/16" x 14 UNC Intermediate HSS Tap - Goliath
1
7/16" x 14 UNC Bottoming HSS Tap - Goliath
1
1/2" x 13 UNC Taper HSS Tap - Goliath
1
1/2" x 13 UNC Intermediate HSS Tap - Goliath
1
1/2" x 13 UNC Bottoming HSS Tap - Goliath
1

About HSS Straight Flute Short Machine and Hand Taps

• These general-purpose taps are ideal for creating new threads in a wide variety of materials.
• Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.

About UNC Unified National Coarse

• This thread form was introduced in 1948 as an attempt to standardize thread forms in the USA, Canada, and the UK.
• The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
• The thread is described by its major diameter and the number of threads per inch of length (TPI).
• This thread series is commonly used in the mass production of bolts, screws, and nuts.
• It is used for threading into lower tensile strength materials (bronze, brass, aluminium, and plastics) to obtain the best resistance to stripping the internal thread.
• It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.

About Intermediate Taps

• Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Taper Taps

• Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Bottoming Taps

• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
