***Allow one week to make up set.***

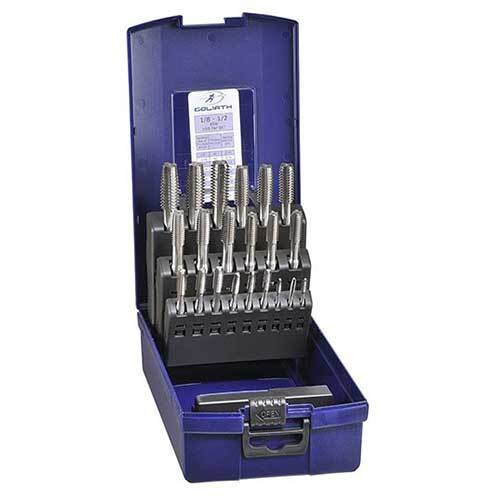

Goliath BSW Tap Set - HSS

• 21pieces boxed set including taper, intermediate & bottom of each size.

Contents

Title
Qty
1/8" x 40 BSW Taper HSS Tap - Goliath
1
1/8" x 40 BSW Intermediate HSS Tap - Goliath
1
1/8" x 40 BSW Bottoming HSS Tap - Goliath
1
3/16" x 24 BSW Taper HSS Tap - Goliath
1
3/16" x 24 BSW Intermediate HSS Tap - Goliath
1
3/16" x 24 BSW Bottoming HSS Tap - Goliath
1
1/4" x 20 BSW Taper HSS Tap - Goliath
1
1/4" x 20 BSW Intermediate HSS Tap - Goliath
1
1/4" x 20 BSW Bottoming HSS Tap - Goliath
1
5/16" x 18 BSW Taper HSS Tap - Goliath
1
5/16" x 18 BSW Intermediate HSS Tap - Goliath
1
5/16" x 18 BSW Bottoming HSS Tap - Goliath
1
3/8" x 16 BSW Taper HSS Tap - Goliath
1
3/8" x 16 BSW Intermediate HSS Tap - Goliath
1
3/8" x 16 BSW Bottoming HSS Tap - Goliath
1
7/16" x 14 BSW Taper HSS Tap - Goliath
1
7/16" x 14 BSW Intermediate HSS Tap - Goliath
1
7/16" x 14 BSW Bottoming HSS Tap - Goliath
1
1/2" x 12 BSW Taper HSS Tap - Goliath
1
1/2" x 12 BSW Intermediate HSS Tap - Goliath
1
1/2" x 12 BSW Bottoming HSS Tap - Goliath
1

About HSS Straight Flute Short Machine and Hand Taps

• These general-purpose taps are ideal for creating new threads in a wide variety of materials.
• Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.

About BSW British Standard Whitworth

• The angle of the thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
• This thread form was developed by Sir Joseph Whitworth in 1841.
• The thread form has rounded.

About Intermediate Taps

• Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Taper Taps

• Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Bottoming Taps

• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
