***Allow one week to make up set.***

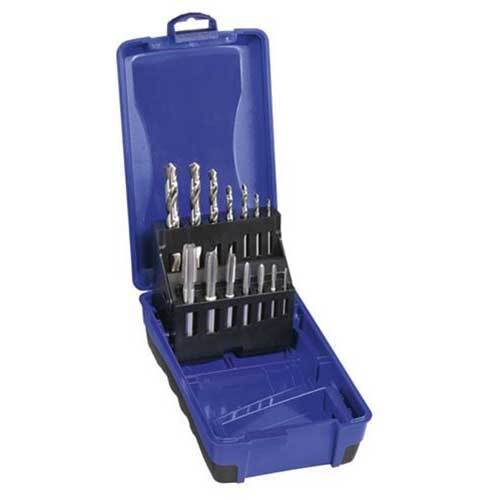

Goliath BSW Tap and Drill Intermediate Set - HSS

• HSS BSW intermediate tap and drill set 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2"

Contents

Title
Qty
1/8" x 40 BSW Intermediate HSS Tap - Goliath
1
5/32" x 32 BSW Intermediate HSS Tap - Goliath
1
3/16" x 24 BSW Intermediate HSS Tap - Goliath
1
1/4" x 20 BSW Intermediate HSS Tap - Goliath
1
5/16" x 18 BSW Intermediate HSS Tap - Goliath
1
3/8" x 16 BSW Intermediate HSS Tap - Goliath
1
1/2" x 12 BSW Intermediate HSS Tap - Goliath
1
2.6mm Bright HSS Jobber
1
3.2mm Bright HSS Jobber
1
3.7mm Bright HSS Jobber
1
5.1mm Bright HSS Jobber
1
6.5mm Bright HSS Jobber
1
7.9mm Bright HSS Jobber
1
10.5mm Bright HSS Jobber
1

About HSS Straight Flute Short Machine and Hand Taps

• These general-purpose taps are ideal for creating new threads in a wide variety of materials.
• Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.

About BSW British Standard Whitworth

• The angle of the thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
• This thread form was developed by Sir Joseph Whitworth in 1841.
• The thread form has rounded roots and crests and is specified in BS84:1956.

About Intermediate Taps

• Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
• Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Drill Bit Surface Treatment

• Bright Finish Jobber Drills have no surface treatment and are supplied in the as-ground condition.
• These tools are suitable for general purpose use, particularly for non-ferrous applications.
