Goliath MC Fluteless HSS-Co5 Tap Bright1

Goliath 2 x 0.4mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 2.5 x 0.45mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 3 x 0.5mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 3.5 x 0.6mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 4 x 0.7mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 5 x 0.8mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 6 x 1mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 8 x 1mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 8 x 1.25mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 10 x 1mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 10 x 1.25mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 10 x 1.5mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 12 x 1.25mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 12 x 1.5mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Goliath 12 x 1.75mm MC Fluteless (Roll Form) HSS-Co5 Tap Bright

Description +

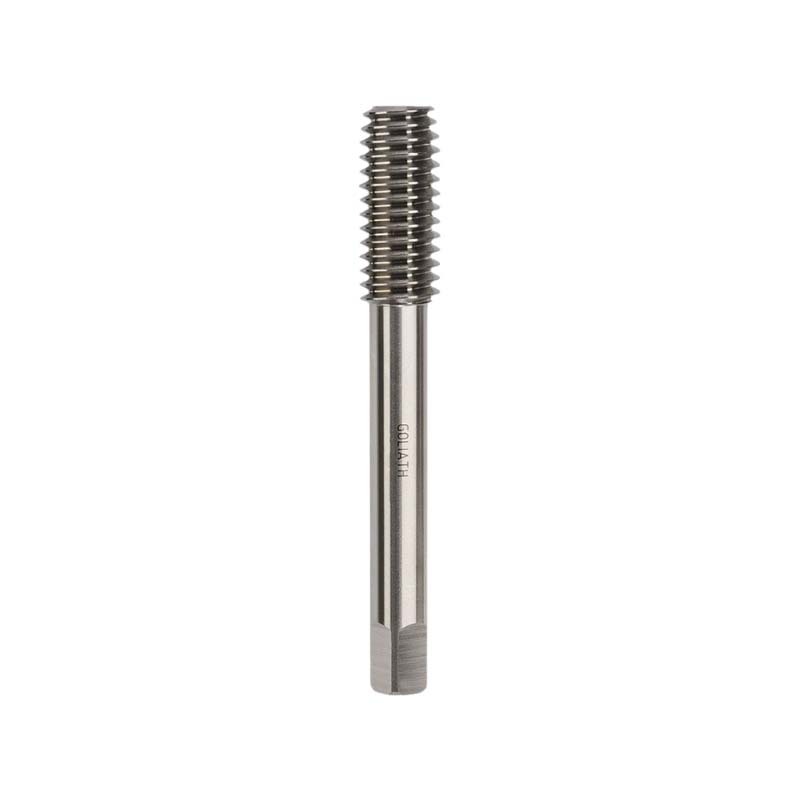

Goliath MC Fluteless (Roll Form) HSS-Co5 Tap Bright

HSS-Co (Cobalt) Bright Finish Metric Coarse Fluteless Machine Tap.
HSS Fluteless (Roll Form) Taps.
Fluteless taps are also referred to as "Roll Form" or "Thread Flow" taps.
Unlike standard taps, fluteless taps create internal threads by pressure deformation, rather than by material removal.
As a result, no chips are formed as no material is removed.
The thread is formed by the tap in the ductile material creating threads that have a smoother surface and greater tensile strength under dynamic stress than cut threads.
It is essential to use a high-quality lubricating fluid when using fluteless taps.
Materials with a minimum elongation of 5% and a tensile strength no greater than 1,000 N/mm2 are suitable for thread forming.
The metric Coarse angle of the thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of the external thread and pitch is specified by a simple numerical value (most commonly measured in millimetres).
Manufactured from HSS this fluteless tap is designed for use in medium tensile materials and is for hand or general machine use.
IMPORTANT - Fluteless Taps use different tapping drill sizes than standard taps.

About HSS Fluteless Taps

In contrast to thread-cutting taps, no chips are created when producing threads with fluteless (roll form/thread flow) taps.
The thread is formed by the tap in the ductile material creating threads that have a smoother surface and greater tensile strength under dynamic stress than cut threads.
It is essential to use a high-quality lubricating fluid when using fluteless taps.
Materials with a minimum elongation of 5% and a tensile strength no greater than 1,000 N/mm2 are suitable for thread forming.
IMPORTANT: Fluteless Taps use different tapping drill sizes than standard taps.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Goliath MC Fluteless HSS-Co5 Tap Bright

SKU: A0193585

Type: Fluteless Tap

$140.16

Inc. GST

Out of stock

The Goliath MC Fluteless HSS-Co5 Tap Bright by Goliath is a Fluteless Tap with a Bright finish, designed for use in medium tensile materials and for hand or general machine use. It provides a minimum elongation of 5% and is suitable for thread forming.
