Goliath FH35EJL Die Nuts, 4mm

The Goliath MC Left Hand Hexagonal Die Nut is a left hand hexagonal HSS die nut for external threads. Goliath solid High Speed Steel (HSS) Die Nuts are used for cutting of new male threads as well as extending /cleaning/resizing of existing threads where a button die is not suited due to workspace restrictions and/or on site thread accessibility.

HSS Die Nuts have a vastly longer tool life than Carbon dies as well as superior thread accuracy. The Metric Coarse angle of the thread is 60 degrees.

Where this product is used

• Suits work in steel, stainless steel, aluminium, brass and plastics

Features

• The crest is flat and the thread has clearance at the root, allowing external and internal threads to engage well
• A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength
• The major diameter of the external thread and pitch is specified by a simple numerical value (most commonly measured in millimetres)

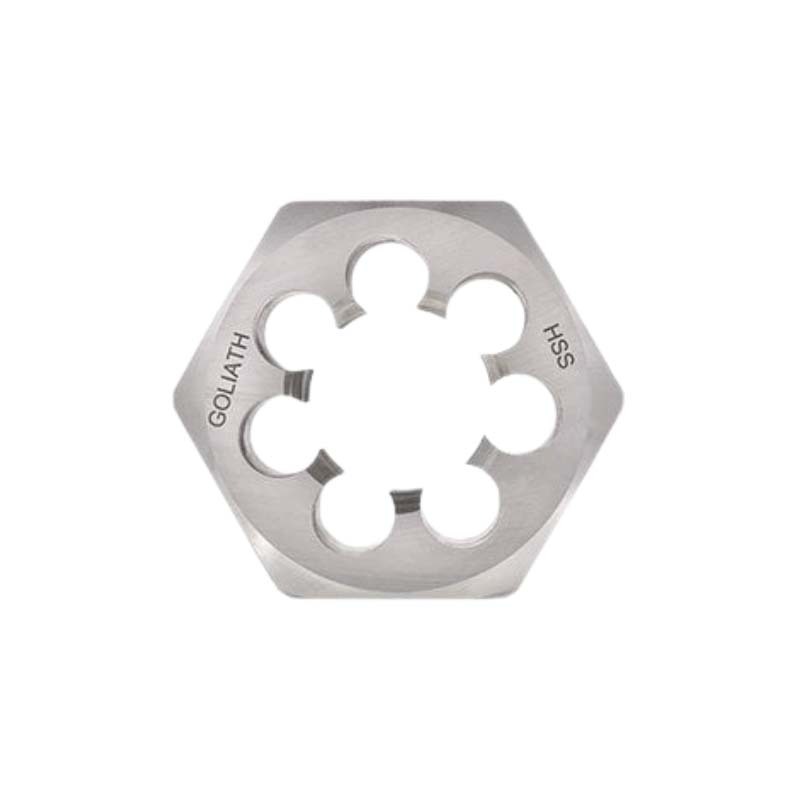

• LEFT HAND Hexagonal HSS Die Nut for External Threads

Key specifications

Choosing the right option

The options differ in diameter and pitch. Each has its own part number.
