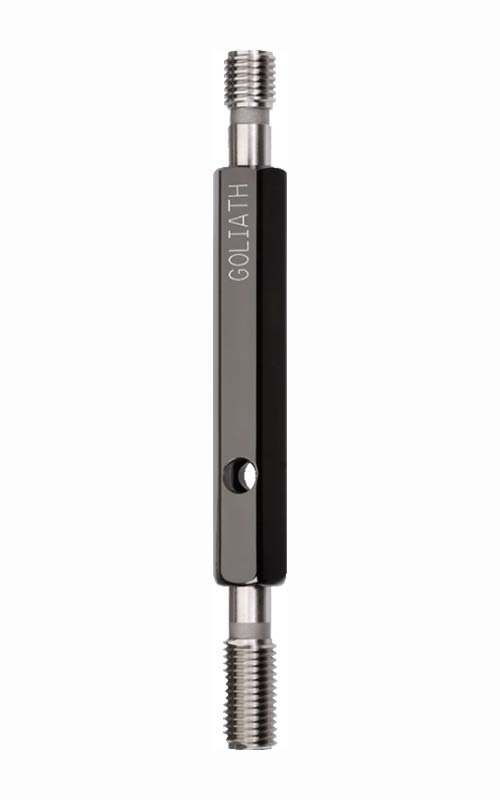

Goliath Metric Coarse Thread Plug Gauge Go/No-Go 18 x 2.5mm
Available
The Goliath Metric Coarse Thread Plug Gauge Go/No-Go comes in several options that differ in pitch and diameter. Supplied with Go at one end and No-Go at the other. Screw Plug Gauge GO controls the workpiece's internal thread pitch diameter and major diameter's maximum physical size.
Where this product is used
- Used in engineering, quality control, manufacturing and construction
Features
- Standard tolerance 6H
- Supplied with manufacturer inspection certificate
- Durable high precision gauge
- Screw Plug Gauge GO end should be screwed into the entire length of the internal thread of the workpiece to ensure thread conformity
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Plug Gauge |
| Gauge type | Go/No-Go |
Choosing the right option
Each option has its own part number.
The lead time is approximately 6 to 8 weeks. A calibration certificate is included. A lead time applies to all gauges. These goods are made to order and are non-refundable.
| Option | Part number | SKU |
|---|---|---|
| 2 | 3020-2.00P | A0174674 |
| 2.5 | 3020-2.50P | A0174675 |
| 3 | 3020-3.00P | A0174676 |
| 3.5 | 3020-3.50P | A0174677 |
| 4 | 3020-4.00P | A0174678 |
| 4.5 | 3020-4.50P | A0174679 |
| 5 | 3020-5.00P | A0174680 |
| 6 | 3020-6.00P | A0174681 |
| 7 | 3020-7.00P | A0174682 |
| 8 | 3020-8.00P | A0174683 |
| 9 | 3020-9.00P | A0174684 |
| 10 | 3020-10.00P | A0174685 |
| 12 | 3020-12.00P | A0174686 |
| 14 | 3020-14.00P | A0174687 |
| 16 | 3020-16.00P | A0174688 |
| 18 | 3020-18.00P | A0174689 |
| 20 | 3020-20.00P | A0174690 |
| 22 | 3020-22.00P | A0174691 |
| 24 | 3020-24.00P | A0174692 |
| 30 | 3020-30.00P | A0174693 |
| 33 | 3020-33.00P | A0174694 |
| 36 | 3020-36.00P | A0174695 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath Metric Coarse Thread Plug Gauge Go/No-Go: 18
SKU: A0174689 | Model: 3020-18.00P
Goliath Metric Coarse Thread Plug Gauge Go/No-Go 18 x 2.5mm, part number 3020-18.00P. Pitch 2.5mm, thread profile Coarse and thread type Metric. Standard tolerance 6H.
