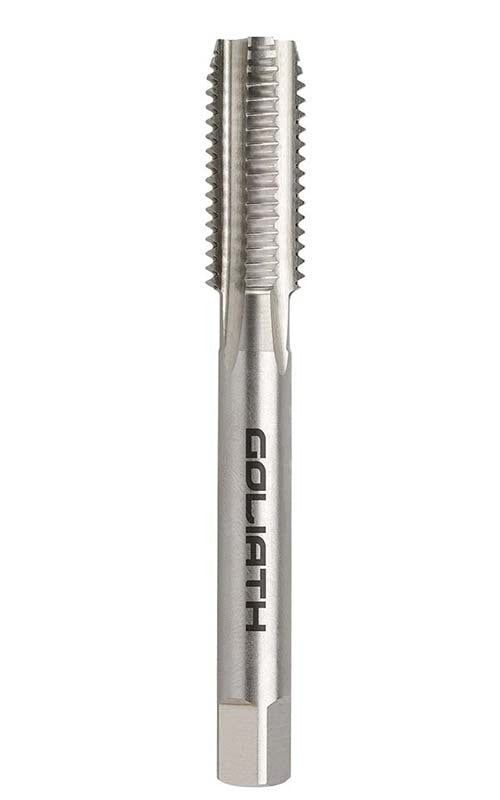

Goliath 8 x 1.25 +0.4mm Metric Course Bottoming HSS Tap - B40EC4.4
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath Metric Coarse Bottoming HSS Tap, available in 6 diameter options: 8.0 +0.4mm, 10.0 +0.4mm, 12.0 +0.4mm, 16.0 +0.4mm, 20.0 +0.4mm, 24.0 +0.45mm.
Goliath metric coarse tap and die sets cover the full standard metric thread range for cutting M-series internal and external threads in engineering and fabrication.
Where this product is used
Goliath metric tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting metric coarse internal and external threads for standard M-series fastener manufacture and repair.
- Engineering workshop threading for metric hardware, structural fasteners, and general machinery.
- Maintenance and repair programs on equipment using metric standard fasteners.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Metric coarse sets are available in a range of size spans — select the set that covers your required size range. HSS grade suits hand and machine threading on mild steel, aluminium, brass, and plastics. For production tapping, consider Goliath cobalt spiral flute machine taps for individual sizes.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath Metric Coarse Bottoming HSS Tap: 8.0 +0.4 mm
SKU: A0197200 | Model: B40EC4.4
This is the diameter 8.0 +0.4mm option of the Goliath Metric Coarse Bottoming HSS Tap. Key details for this option: thread form type Metric Coarse, drill diameter 7.2mm, length overall 72mm, pitch 1.25mm.
Goliath MC Bottoming HSS Tap - Oversize/Galvanising
HSS Bright Finish Metric Coarse Oversize/Galvanising Hand and Machine Bottoming Tap.
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
The Metric Coarse angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of the external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
