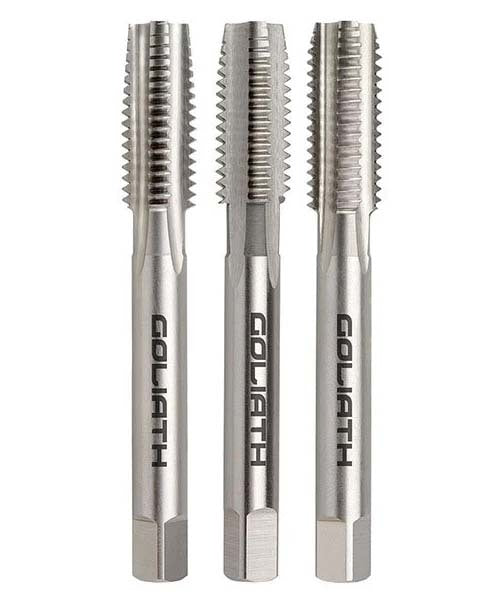

Goliath 8 x 1.25 +0.4mm Metric Course HSS Tap Set Bright - B40ED4.4
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath Metric Coarse HSS Tap Set Bright, available in 6 diameter options: 8.0 +0.4mm, 10.0 +0.4mm, 12.0 +0.4mm, 16.0 +0.4mm, 20.0 +0.4mm, 24.0 +0.45mm.
Goliath metric tap sets provide HSS hand taps for cutting M-series internal threads across the standard metric coarse thread range.
Where this product is used
Goliath metric tap set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting metric coarse internal threads for standard M-series fastener sizes.
- General engineering and maintenance threading where metric taps only are required.
- Replacement tap sets for workshop toolrooms with existing die stock.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Metric tap sets suit hand and light machine tapping in standard M-series sizes. Sets are available as taper-only, or including second and plug taps — select based on whether you need all three tap types. For production tapping, specify individual cobalt spiral flute machine taps for the required size.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath Metric Coarse HSS Tap Set Bright: 8.0 +0.4 mm
SKU: A0197206 | Model: B40ED4.4
This is the diameter 8.0 +0.4mm option of the Goliath Metric Coarse HSS Tap Set Bright. Key details for this option: thread form type Metric Coarse, drill diameter 7.2mm, length overall 72mm, pitch 1.25mm.
Goliath MC HSS Tap Set Bright - Oversize/Galvanising
HSS Bright Finish Metric Coarse Oversize/Galvanising Hand and Machine Tap Set.
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
The metric Coarse angle of the thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch is specified by a simple numerical value (most commonly measured in millimetres).
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
