Goliath 8 x 1mm MF Straight Flute Left Hand HSS Tap Set - B40XED4L
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath Metric Fine (MF) Left Hand HSS Tap Set, available in 9 diameter options: 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm and 1 more.
Goliath metric fine tap sets cut MF-series internal threads for precision assemblies requiring fine-pitch thread engagement and pull-out resistance.
Where this product is used
Goliath metric fine tap set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting metric fine internal threads for precision engineering and automotive applications.
- MF thread tapping where fine pitch is required for increased thread engagement.
- Precision toolrooms and production environments using MF thread specifications.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Metric fine tap sets suit precision applications — confirm MF pitch before ordering. MF threads are not interchangeable with metric coarse — verify the thread specification in your assembly. Sets are typically supplied with taper, second, and plug taps for hand threading.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath Metric Fine (MF) Left Hand HSS Tap Set: 8mm / 1mm
SKU: A0198357 | Model: B40XED4L
This is the diameter 8mm, pitch 1mm option of the Goliath Metric Fine (MF) Left Hand HSS Tap Set. Key details for this option: thread form type Metric Fine, drill diameter 7mm, length overall 69mm.
Goliath Metric Fine (MF) Left Hand HSS Tap Set

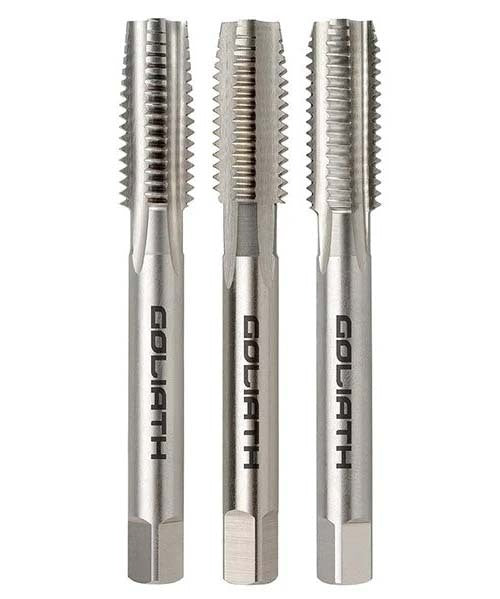

Left Hand HSS Bright Finish Metric Fine Hand and Machine Tap Set (T, I, B).
HSS Straight Flute Short Machine and Hand Taps.
These general purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
The metric Fine angle of the thread is 60 degrees. The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength. The major diameter of the external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
