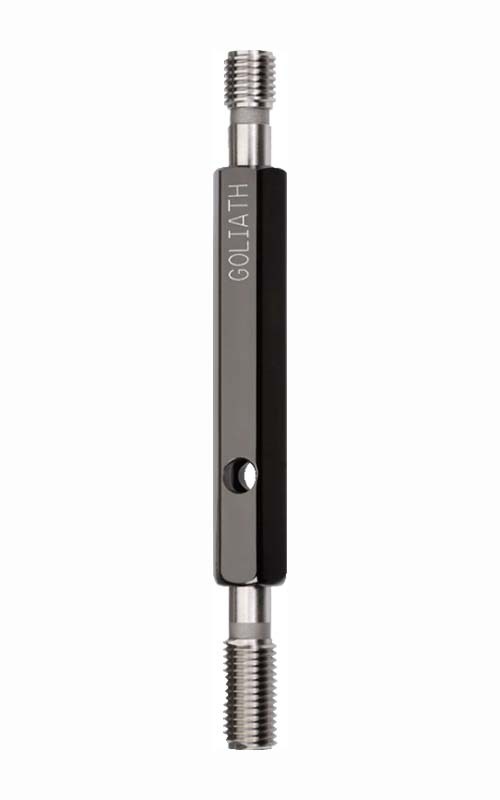

Goliath Metric Fine Thread Plug Gauge Go/No-Go 10 x 1.25mm
Available
The Goliath Metric Fine Thread Plug Gauge Go/No-Go comes in several options that differ in diameter and pitch. Supplied with Go at one end and No-Go at the other. Durable high precision gauge. Screw Plug Gauge GO controls the workpiece's internal thread's pitch diameter and major diameter's maximum physical size.
Where this product is used
- Used in engineering, quality control, manufacturing and construction
Features
- Standard tolerance 6H
- Supplied with manufacturer inspection certificate
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Plug Gauge |
| Gauge type | Go/No-Go |
Choosing the right option
Each option has its own part number.
The lead time is approximately 6 to 8 weeks. A calibration certificate is included. A lead time applies to all gauges. These goods are made to order and are non-refundable.
| Option | Part number | SKU |
|---|---|---|
| 8 / 1mm | 3021-8.00P | A0174740 |
| 10 / 1mm | 3022-10.00P | A0174741 |
| 10 / 1.25mm | 3021-10.00P | A0174742 |
| 12 / 1.25mm | 3022-12.00P | A0174743 |
| 12 / 1.5mm | 3021-12.00P | A0174744 |
| 14 / 1.25mm | 3022-14.00P | A0174745 |
| 14 / 1.5mm | 3021-14.00P | A0174746 |
| 16 / 1.5mm | 3023-16.00P | A0174747 |
| 18 / 1.5mm | 3022-18.00P | A0174748 |
| 20 / 1.5mm | 3023-20.00P | A0174749 |
| 22 / 1.5mm | 3021-22.00P | A0174750 |
| 24 / 2mm | 3021-24.00P | A0174751 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath Metric Fine Thread Plug Gauge Go/No-Go: 10 / 1.25 mm
SKU: A0174742 | Model: 3021-10.00P
Goliath Metric Fine Thread Plug Gauge Go/No-Go 10 x 1.25mm, part number 3021-10.00P. Diameter 10mm, pitch 1.25mm and thread profile Fine. Standard tolerance 6H.
