Goliath 16 x 1.75mm MF Straight Flute Tap - Intermediate HSS Bright
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath MF Straight Flute Tap - Intermediate HSS Bright 2, available in 19 diameter options: 16mm, 18mm, 20mm, 22mm, 24mm, 25mm, 26mm, 27mm and 11 more.
Goliath tap and die sets provide a complete threading solution for cutting internal and external threads across a range of standard thread forms.
Where this product is used
Goliath tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Complete threading kits for workshop, maintenance, and toolroom use across the full standard thread range.
- Cutting internal and external threads for bolt and nut manufacture, thread repair, and mechanical assembly.
- Versatile workshop threading where both tap and die capability is required in a single set.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Select the tap and die set by thread standard: Metric for ISO metric fasteners, UNC/UNF for American-standard, BSF/BSW for older British equipment, and BSP/BSPT/NPT for pipe connections. All Goliath sets are HSS — suitable for hand and light machine threading on ferrous and non-ferrous materials.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath MF Straight Flute Tap - Intermediate HSS Bright 2: 16mm / 1.75mm
SKU: A0195013 | Model: B44446XEB4
This is the diameter 16mm, pitch 1.75mm option of the Goliath MF Straight Flute Tap - Intermediate HSS Bright 2. Key details for this option: thread form type Metric Fine, drill diameter 14.75mm, length overall 95mm.

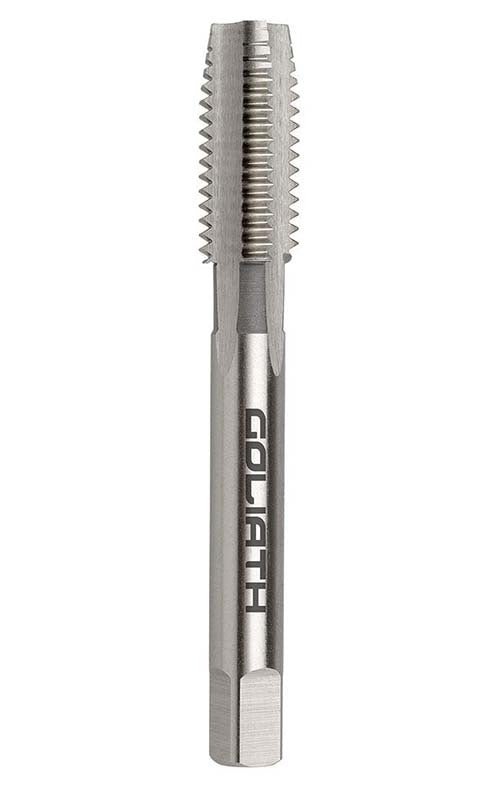

Goliath MF Straight Flute Tap - Intermediate HSS Bright
HSS Bright Finish Metric Fine Hand and Machine Intermediate Tap.
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.
The metric Fine angle of the thread is 60 degrees. The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
A Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of the external thread and pitch is specified by a simple numerical value (most commonly measured in millimetres).
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
