Goliath 1/8" x 27 TPI NPSF Intermediate HSS Bright Pipe Tap B81ZKCB4
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath NPSF (Dryseal) Intermediate HSS Bright Pipe Tap, available in 6 diameter options: 1/8", 1/4", 1/2", 1", 3/8", 3/4".
Goliath tap and die sets provide a complete threading solution for cutting internal and external threads across a range of standard thread forms.
Where this product is used
Goliath tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Complete threading kits for workshop, maintenance, and toolroom use across the full standard thread range.
- Cutting internal and external threads for bolt and nut manufacture, thread repair, and mechanical assembly.
- Versatile workshop threading where both tap and die capability is required in a single set.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Select the tap and die set by thread standard: Metric for ISO metric fasteners, UNC/UNF for American-standard, BSF/BSW for older British equipment, and BSP/BSPT/NPT for pipe connections. All Goliath sets are HSS — suitable for hand and light machine threading on ferrous and non-ferrous materials.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

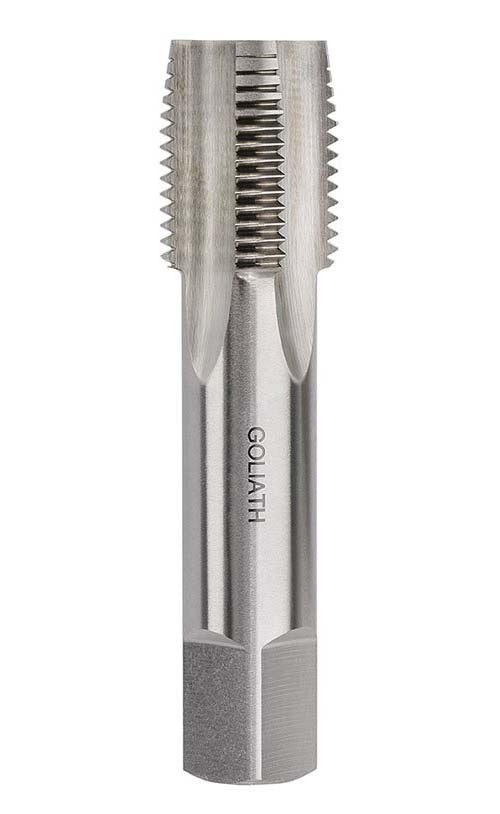

Goliath NPSF (Dryseal) Intermediate HSS Bright Pipe Tap: 1/8"
SKU: A0201190 | Model: B81ZKCB4
Diameter 1/8". Goliath NPSF (Dryseal) Intermediate HSS Bright Pipe Tap
HSS Bright Finish NPSF Hand and Machine Intermediate Tap.
Pipe taps are much shorter than a similar size of regular hand tap, but the design features are the same.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
National Pipe Straight Fuel (Dryseal) is used for internal threads and an NPTF external thread can be screwed into it to provide both a satisfactory mechanical connection and hydraulic seal.
A combination of a parallel and tapered thread would not appear to be ideal but it is widely used.
Many quick disconnect couplers for example have the NPSF thread and are recommended by the manufacturer for use with NPT and NPTF.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
