Goliath 1" x 11.5 TPI NPTF (Dryseal Taper) Bottoming HSS Tap - C87ZKEC5
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath NPTF Bottoming HSS Tap, available in 8 diameter options: 1", 1-1/4", 1/2", 1/4", 1/16", 1/8", 3/4", 3/8".
Goliath NPT tap and die sets cut National Pipe Taper threads to American standard for threaded pipe connections in fluid, pneumatic, and hydraulic systems.
Where this product is used
Goliath npt tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting National Pipe Taper threads for American-standard pipe connections in fluid and pneumatic systems.
- Threading fittings, nipples, and pipe connectors to NPT standard.
- Maintenance and manufacturing of American-standard pipe assemblies.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
NPT sets cut American-standard taper pipe threads for sealing pipe connections. NPT and BSPT are different taper thread standards — confirm the correct standard before cutting. Select the set that covers the pipe sizes in your system.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath NPTF Bottoming HSS Tap: 1"
SKU: A0199317 | Model: C87ZKEC5
This is the diameter 1" option of the Goliath NPTF Bottoming HSS Tap. Key details for this option: thread form type NPT, length overall 109mm.

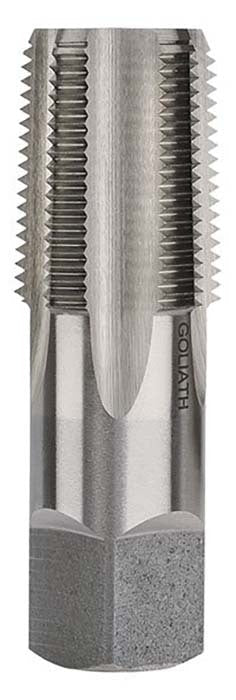

Goliath NPTF (Dryseal Taper) Bottoming HSS Tap
HSS Bright Finish NPTF Hand and Machine Bottoming Tap.
Pipe taps are much shorter than a similar size of regular hand tap, but the design features are the same.
Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
Tapered Pipe Taps are used for tapered threading by hand or machine.
National Pipe Taper Fuel (DRYSEAL TAPER) is a semi-compatible variant of NPT, designed to provide a more leak free seal without the use of teflon tape or other sealant compound.
NPTF threads are the same basic shape but with crest and root heights adjusted for an interference fit, eliminating the spiral leakage path.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
