Goliath PG 7 (11.7mm)Taper HSS Bright Straight Flute Tap PG7T
Out of stock
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath PG Taper HSS Bright Straight Flute Tap, available in 6 diameter options: 11.7mm, 14.3mm, 17.7mm, 19.5mm, 21.6mm, 27.4mm.
Goliath tap and die sets provide a complete threading solution for cutting internal and external threads across a range of standard thread forms.
Where this product is used
Goliath tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Complete threading kits for workshop, maintenance, and toolroom use across the full standard thread range.
- Cutting internal and external threads for bolt and nut manufacture, thread repair, and mechanical assembly.
- Versatile workshop threading where both tap and die capability is required in a single set.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Select the tap and die set by thread standard: Metric for ISO metric fasteners, UNC/UNF for American-standard, BSF/BSW for older British equipment, and BSP/BSPT/NPT for pipe connections. All Goliath sets are HSS — suitable for hand and light machine threading on ferrous and non-ferrous materials.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath PG Taper HSS Bright Straight Flute Tap: 11.7mm
SKU: A0201367 | Model: PG7T
This is the diameter 11.7mm option of the Goliath PG Taper HSS Bright Straight Flute Tap. Key details for this option: thread form type PG, size PG 7, length overall 89mm.

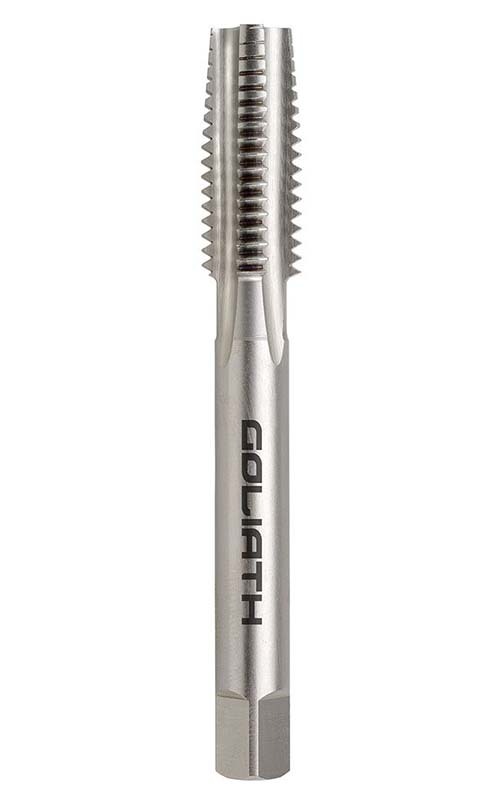

Goliath PG Taper HSS Bright Straight Flute Tap
HSS Bright Finish PG Hand and Machine Taper Tap.
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
Panzerrohr-Gewinde thread form was developed in Germany for joining electrical conduit and cable glands.
Because the conduit walls are thin, obtaining a satisfactory thread depth was a problem.
For this reason, the PG thread form has a thread angle of 80°.
The number shown as part of the size identification for the PG thread form denotes the maximum cable diameter in millimetres that can be passed through the conduit.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
