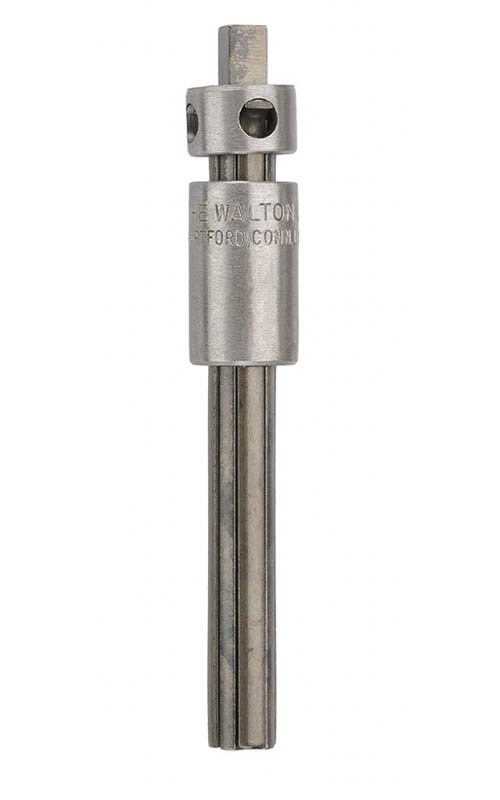

Goliath Tap Extractor M3 (#4), 3 Flute - TE3
Available

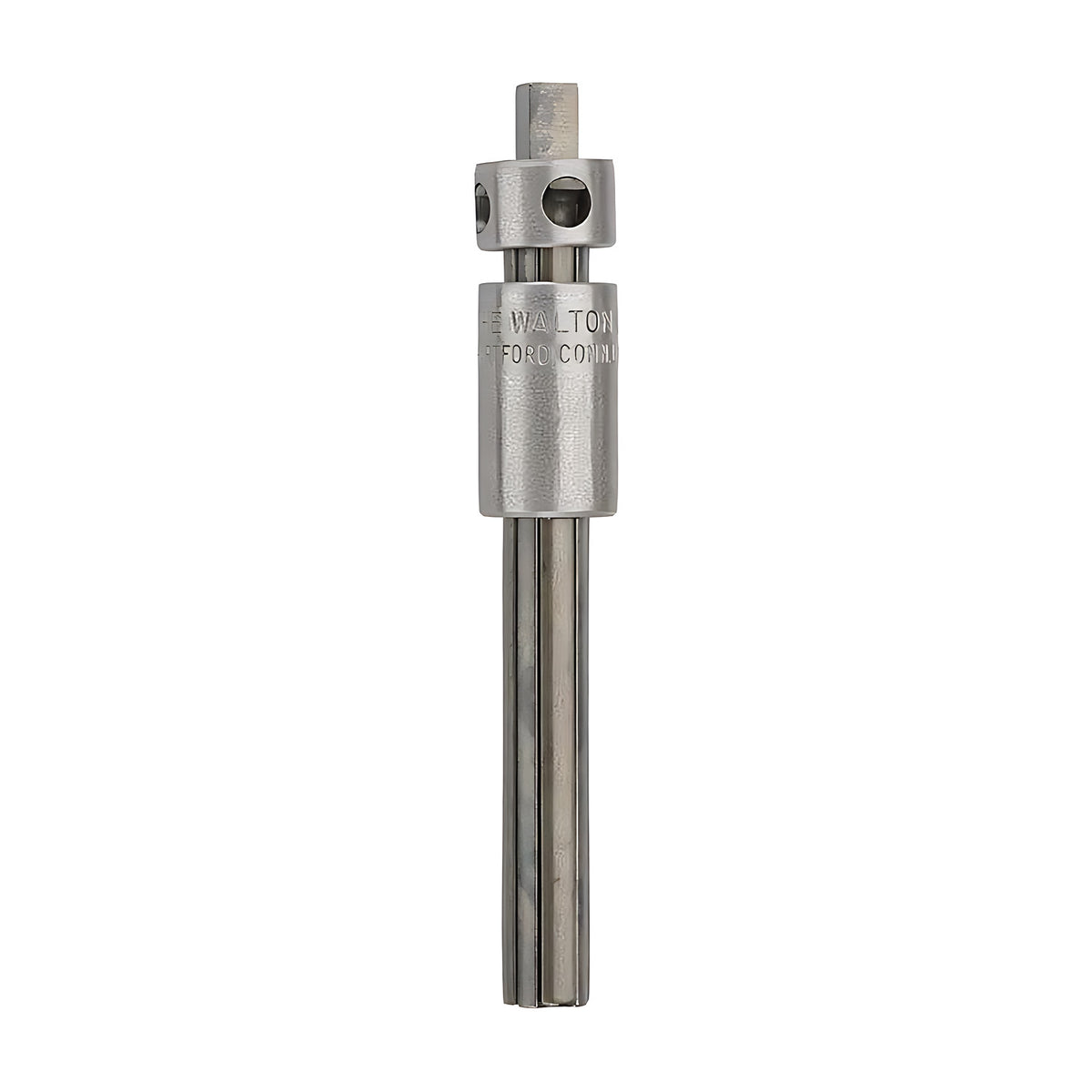

The Goliath Tap Extractor (Walton USA Broken Tap Extractor) comes in several options that differ in tap diameter and flutes. Walton Tap Extractor remove broken machine and hand taps with ease and save the existing thread. Walton Tap Extractors let you remove broken taps without drilling, lasers, damaged threads, scrapped parts, or repair inserts.
The hardened steel fingers of Walton Tap Extractors fit in the flutes of a broken tap to back it out simply and safely. This effective method has been used since 1908. They are available in most common tap sizes, both inch and metric, as sets or individuals.
Where this product is used
- Suits work in steel, stainless steel, aluminium, brass and plastics
Features
- Easily the fastest and cheapest solution for removing broken taps
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Tap Extractor |
Choosing the right option
Each option has its own part number.
| Option | Part number | SKU |
|---|---|---|
| 3 / M3 (#4) | TE3 | A0174406 |
| 3 / M3.2 (#5) | TE3.2 | A0174407 |
| 3 / M3.5 (#6) | TE3.5 | A0174408 |
| 3 / M4 (#8) | TE4 | A0174409 |
| 3 / M5 (#10) | TE5 | A0174410 |
| 3 / M5.5 (#12) | TE5.5 | A0174411 |
| 3 / M6 (1/4") | TE6 | A0174412 |
| 3 / M8 (5/16") | TE8-3Flt | A0174414 |
| 3 / M9/M10 (3/8") | TE10-3Flt | A0174416 |
| 3 / M12 (1/2") | TE12-3Flt | A0174419 |
| 3 / M16 (5/8") | TE16-3Flt | A0174422 |
| 3 / M20 (3/4") | TE20-3Flt | A0174424 |
| 3 / M24/M25 (1") | TE24-3Flt | A0174427 |
| 4 / M6 (1/4") | TE6-4Flt | A0174413 |
| 4 / M8 (5/16") | TE8 | A0174415 |
| 4 / M9/M10 (3/8") | TE10 | A0174417 |
| 4 / M11 (7/16") | TE11 | A0174418 |
| 4 / M12 (1/2") | TE12 | A0174420 |
| 4 / M14 (9/16") | TE14 | A0174421 |
| 4 / M16 (5/8") | TE16 | A0174423 |
| 4 / M20 (3/4") | TE20 | A0174425 |
| 4 / M22 (7/8") | TE22 | A0174426 |
| 4 / M24/M25 (1") | TE24 | A0174428 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath Tap Extractor (Walton USA Broken Tap Extractor): 3 / M3 (#4)
SKU: A0174406 | Model: TE3
Goliath Tap Extractor M3 (#4), 3 Flute - TE3. Tap diameter 3mm, flutes 3 and flutes 3 / M3 (#4). Easily the fastest and cheapest solution for removing broken taps.
