Goliath 1" x 10 TPI BSF Bottoming Left Hand HSS Tap C20BC4L
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath TPI BSF Bottoming Left Hand HSS Tap, available in 9 tpi options: 10, 11, 12, 14, 16, 18, 20, 22 and 1 more.
Goliath BSF tap and die sets cut British Standard Fine threads for maintenance and repair of British-standard machinery, vintage equipment, and classic vehicles.
Where this product is used
Goliath bsf tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting British Standard Fine threads for vintage machinery, classic vehicles, and older British-standard equipment.
- Maintenance and repair of British engineering equipment using BSF fixings.
- Toolrooms and heritage engineering workshops maintaining British-standard machinery.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
BSF sets suit maintenance and repair of British-standard and vintage engineering equipment. Confirm BSF is the correct thread standard — BSF, BSW, and BSP are different British thread forms. Select the set that covers the size range needed for your maintenance program.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath TPI BSF Bottoming Left Hand HSS Tap: 10
SKU: A0196601 | Model: C20BC4L
This is the tpi 10 option of the Goliath TPI BSF Bottoming Left Hand HSS Tap. Key details for this option: thread form type BSF, length overall 130mm.

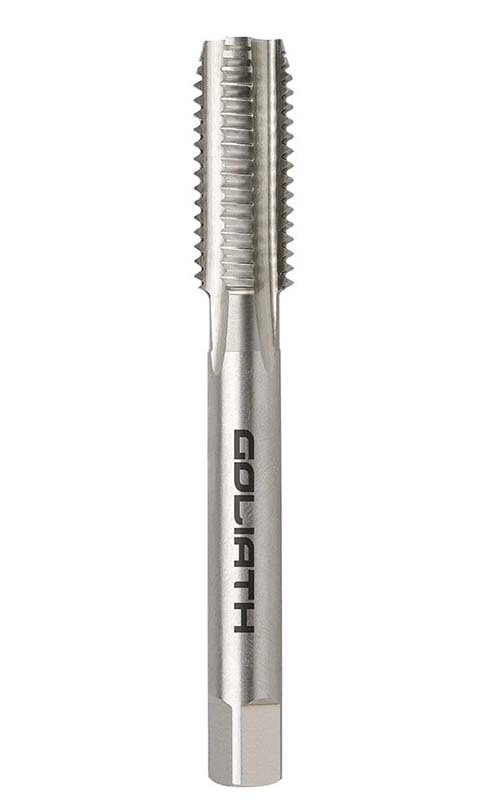

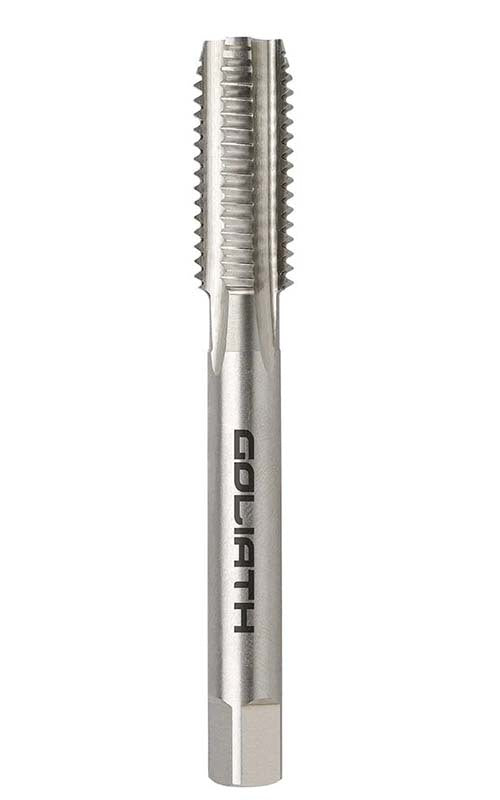

Goliath BSF Bottoming Left Hand HSS Tap
Left Hand HSS Bright Finish BSF Hand and Machine Bottoming Tap.
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
British Standard Fine thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter).
The thread form was first introduced in 1908 and is specified in BS84:1956.
When used on external threads this series has a greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
