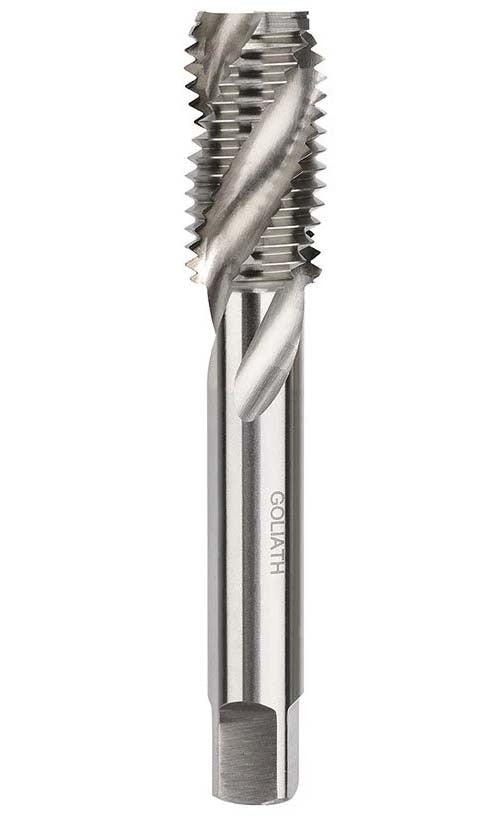

Goliath 1/4" x 20 UNC Spiral Flute HSS-Co5 Tap B11CF3
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath UNC Spiral Flute HSS-Co5 Tap, available in 15 diameter options: 1/4", 1/2", 1", 3/8", 3/4", No. 4, No. 5, 5/16" and 7 more.
Goliath HSS-Co5 cobalt spiral flute machine taps cut internal threads in blind holes at speed, ejecting chips upward for clean, uninterrupted cutting.
Where this product is used
Goliath spiral flute machine tap products are used across engineering workshops, production machining, and industrial maintenance programs.
- Tapping blind holes at machine speeds where chip ejection is critical.
- CNC and production tapping of ductile materials including aluminium, mild steel, and stainless steel.
- High-speed internal threading where chip packing would otherwise cause tap breakage.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS-Co5 Cobalt |
Selecting the right option
Spiral flute taps suit blind-hole tapping — the spiral ejects chips upward, preventing chip packing. HSS-Co5 cobalt grade suits stainless steel, titanium, and difficult materials at machine speeds. Use a titanium nitride (TiN) coated tap for improved surface finish and tool life in production runs.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNC Spiral Flute HSS-Co5 Tap: 1/4"
SKU: A0195912 | Model: B11CF3
Diameter 1/4". Goliath UNC Spiral Flute HSS-Co5 Tap
HSS-Co (Cobalt) Bright Finish UNC Spiral Flute Machine Tap.
HSS-Co Spiral Flute Taps.
Spiral Flute taps are designed primarily for machine tapping of blind holes.
They are used to the best advantage in materials that produce long continuous chips.
The right-hand spiral forces the swarf out of the hole and prevents the chips from clogging at the bottom of the hole or in the flutes, which could cause tap breakage or spoiled threads.
The Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
This thread series is commonly used in the mass production of bolts, screws, and nuts.
It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
Manufactured from HSS-Co5.
