Goliath No. 1G x 64 UNC Straight Flute Tap - Bottoming HSS Bright
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath UNC Straight Flute Tap - Bottoming HSS Bright, available in 26 diameter options: No. 1, 1/4", 1/2", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2" and 18 more.
Goliath UNC tap and die sets cover the Unified National Coarse thread range for threading applications in American-standard machinery, equipment, and fastener repair.
Where this product is used
Goliath unc tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting Unified National Coarse threads for American-standard machinery, equipment, and fastener work.
- Maintenance and repair of American-standard equipment and imported machinery with UNC fixings.
- Workshop threading in industries using American or US-export equipment.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Select the UNC set that covers your required size range — Goliath offers sets from No. 2 to 3/4" UNC. HSS grade suits hand and light machine threading on steel, aluminium, and non-ferrous materials. For production work on individual UNC sizes, consider individual Goliath machine taps.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNC Straight Flute Tap - Bottoming HSS Bright: No. 1
SKU: A0195793 | Model: AK02CC3
This is the diameter No. 1 option of the Goliath UNC Straight Flute Tap - Bottoming HSS Bright. Key details for this option: thread form type UNC, drill diameter 1.55mm, length overall 41mm.

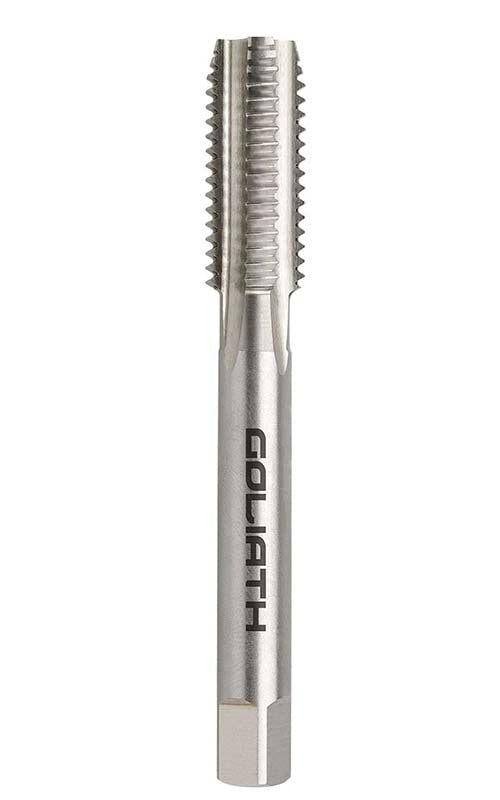

Goliath UNC Straight Flute Tap - Bottoming HSS Bright
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
This thread series is commonly used in the mass production of bolts, screws, and nuts.
It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
It is also used for quick assembly or disassembly or if corrosion or slight damage is possible.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
