Goliath No. 1G x 64 UNC Straight Flute Tap Set HSS Bright
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath UNC Straight Flute Tap Set HSS Bright, available in 26 diameter options: No. 1, 1/4", 1/2", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2" and 18 more.
Goliath UNC tap sets cut Unified National Coarse internal threads for threading work on American-standard machinery and equipment.
Where this product is used
Goliath unc tap set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting UNC internal threads for American-standard fastener applications.
- Maintenance and repair threading on equipment with UNC fixings.
- Workshop tap sets for industries using American-standard machinery.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
Select the UNC tap set covering your required size range. HSS bright finish suits general engineering materials — for stainless or high-speed production, consider cobalt machine taps. Confirm UNC is the correct thread form — UNC and UNF are different pitch standards.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNC Straight Flute Tap Set HSS Bright: No. 1
SKU: A0195819 | Model: AK02CD3
This is the diameter No. 1 option of the Goliath UNC Straight Flute Tap Set HSS Bright. Key details for this option: thread form type UNC, drill diameter 1.55mm, length overall 41mm.

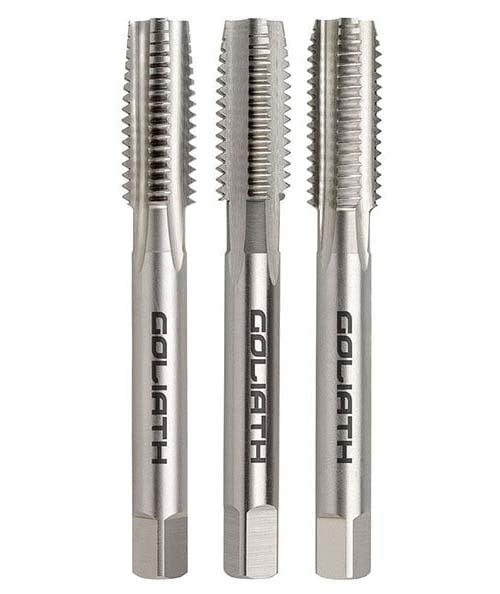

Goliath UNC Straight Flute Tap Set HSS Bright
HSS Bright Finish UNC Hand and Machine Tap Set (T, I, B).
HSS Straight Flute Short Machine and Hand Taps.
These general-purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
The Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
This thread series is commonly used in the mass production of bolts, screws, and nuts.
It is used for threading into lower tensile strength materials (bronze, brass, aluminium, and plastics) to obtain the best resistance to stripping of the internal thread.
It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
