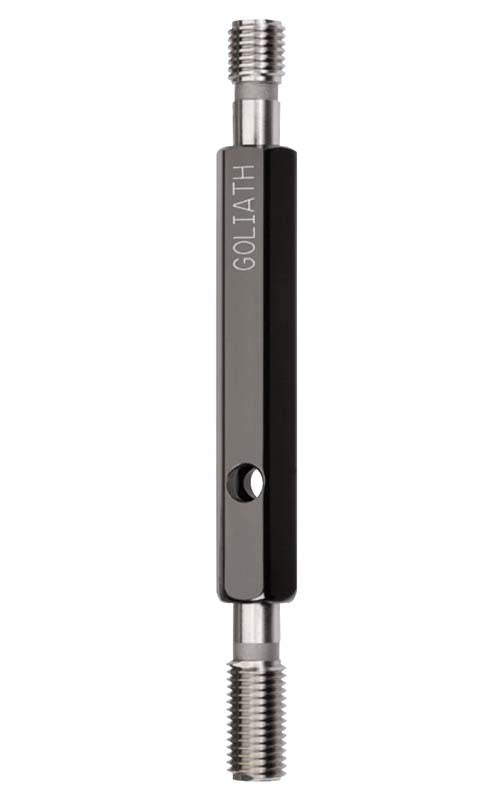

Goliath UNF Thread Plug Gauge Go/No-Go 7/16" x 20 TPI
Available
The Goliath UNF Thread Plug Gauge comes in several options that differ in diameter, threads per and diameter inch. Supplied with Go at one end and No-Go at the other. Durable high precision gauge. Screw Plug Gauge GO controls the workpiece's internal thread's pitch diameter and major diameter's maximum physical size.
Where this product is used
- Used in engineering, quality control, manufacturing and construction
Features
- UNF - Unified National Fine
- Standard tolerance 2B
- Supplied with manufacturer inspection certificate
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Plug Gauge |
| Gauge type | Go/No-Go |
Choosing the right option
Each option has its own part number.
The lead time is approximately 6 to 8 weeks from receipt of the order. A calibration certificate is included. A lead time applies to all gauges. These goods are made to order and are non-refundable.
| Option | Part number | SKU |
|---|---|---|
| 1 | 3034-1P | A0175380 |
| 1-1/2 | 3034-1.1/2P | A0175383 |
| 1-1/4 | 3034-1.1/4P | A0175382 |
| 1-1/8 | 3034-1.1/8P | A0175381 |
| 1/2 | 3034-1/2P | A0175375 |
| 1/4 | 3034-1/4P | A0175371 |
| 3/4 | 3034-3/4P | A0175378 |
| 3/8 | 3034-3/8P | A0175373 |
| 4G | 3034-4GP | A0175365 |
| 5/8 | 3034-5/8P | A0175377 |
| 5/16 | 3034-5/16P | A0175372 |
| 5G | 3034-5GP | A0175366 |
| 6G | 3034-6GP | A0175367 |
| 7/8 | 3034-7/8P | A0175379 |
| 7/16 | 3034-7/16P | A0175374 |
| 8G | 3034-8GP | A0175368 |
| 9/16 | 3034-9/16P | A0175376 |
| 10G | 3034-10GP | A0175369 |
| 12G | 3034-12GP | A0175370 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNF Thread Plug Gauge: 7/16
SKU: A0175374 | Model: 3034-7/16P
Goliath UNF Thread Plug Gauge Go/No-Go 7/16" x 20 TPI, part number 3034-7/16P. Diameter 7/16", threads per 20" and thread type UNF. UNF - Unified National Fine.
