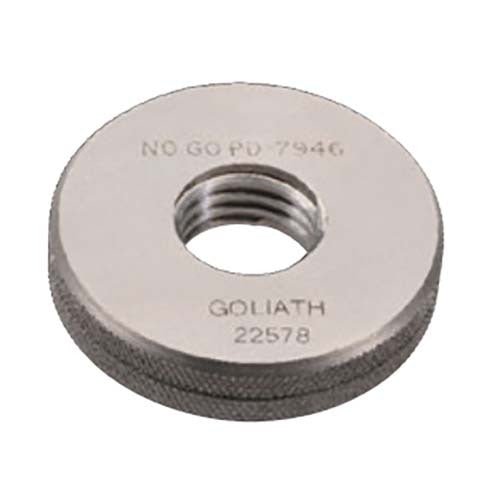

Goliath UNF Thread Ring Gauge No-Go 6G" x 40 TPI
Out of stock
The Goliath UNF Thread Ring Gauge comes in several options that differ in diameter inch, threads per, ring gauge type and diameter. Go ring gauges and No-Go ring gauges are separate products. Durable high precision gauge. Go of thread ring gauge controls the workpiece's external thread's pitch diameter and minor diameter's maximum physical size.
Where this product is used
- Used in engineering, quality control, manufacturing and construction
Features
- UNF - Unified National Fine
- Standard tolerance 2A
- Supplied with manufacturer inspection certificate
Key specifications
| Specification | Detail |
|---|---|
| Brand | Goliath |
| Type | Ring Gauge |
| Gauge type | No-Go |
Choosing the right option
Each option has its own part number.
The lead time is approximately 6 to 8 weeks. A calibration certificate is included. A lead time applies to all gauges. These goods are made to order and are non-refundable.
| Option | Part number | SKU |
|---|---|---|
| 4G / Go | 3034-4GR | A0175384 |
| 4G / No-Go | 3034-4GR-NG | A0175403 |
| 5G / Go | 3034-5GR | A0175385 |
| 5G / No-Go | 3034-5GR-NG | A0175404 |
| 6G / Go | 3034-6GR | A0175386 |
| 6G / No-Go | 3034-6GR-NG | A0175405 |
| 8G / Go | 3034-8GR | A0175387 |
| 8G / No-Go | 3034-8GR-NG | A0175406 |
| 10G / Go | 3034-10GR | A0175388 |
| 10G / No-Go | 3034-10GR-NG | A0175407 |
| 12G / Go | 3034-12GR | A0175389 |
| 12G / No-Go | 3034-12GR-NG | A0175408 |
| 1/4 / Go | 3034-1/4R | A0175390 |
| 1/2 / Go | 3034-1/2R | A0175394 |
| 1 / Go | 3034-1R | A0175399 |
| 1-1/8 / Go | 3034-1.1/8R | A0175400 |
| 1-1/4 / Go | 3034-1.1/4R | A0175401 |
| 1-1/2 / Go | 3034-1.1/2R | A0175402 |
| 1/4 / No-Go | 3034-1/4R-NG | A0175409 |
| 1/2 / No-Go | 3034-1/2R-NG | A0175413 |
| 1 / No-Go | 3034-1R-NG | A0175418 |
| 1-1/8 / No-Go | 3034-1.1/8R-NG | A0175419 |
| 1-1/4 / No-Go | 3034-1.1/4R-NG | A0175420 |
| 1-1/2 / No-Go | 3034-1.1/2R-NG | A0175421 |
| 3/8 / Go | 3034-3/8R | A0175392 |
| 3/4 / Go | 3034-3/4R | A0175397 |
| 3/8 / No-Go | 3034-3/8R-NG | A0175411 |
| 3/4 / No-Go | 3034-3/4R-NG | A0175416 |
| 5/16 / Go | 3034-5/16R | A0175391 |
| 5/8 / Go | 3034-5/8R | A0175396 |
| 5/16 / No-Go | 3034-5/16R-NG | A0175410 |
| 5/8 / No-Go | 3034-5/8R-NG | A0175415 |
| 7/16 / Go | 3034-7/16R | A0175393 |
| 7/8 / Go | 3034-7/8R | A0175398 |
| 7/16 / No-Go | 3034-7/16R-NG | A0175412 |
| 7/8 / No-Go | 3034-7/8R-NG | A0175417 |
| 9/16 / Go | 3034-9/16R | A0175395 |
| 9/16 / No-Go | 3034-9/16R-NG | A0175414 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNF Thread Ring Gauge: 6G / No-Go
SKU: A0175405 | Model: 3034-6GR-NG
Goliath UNF Thread Ring Gauge No-Go 6G" x 40 TPI, part number 3034-6GR-NG. Diameter inch 6G, threads per 40" and thread type UNF. UNF - Unified National Fine.
