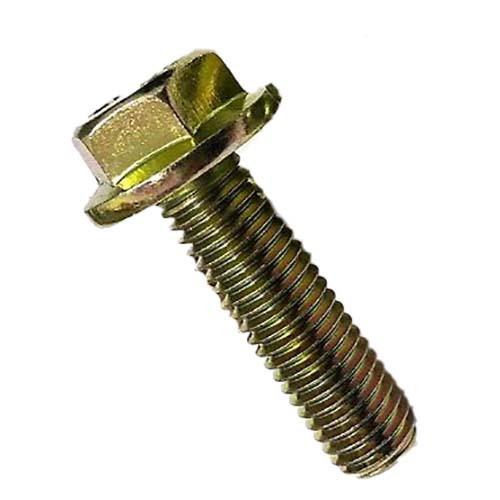

Hobson Metric Hex Flange Bolt, M5 / 16

The Hobson metric hex flange bolt has a hex head with a flange under it, which acts as a built-in washer face, and a metric thread (Class 8.8, zinc yellow passivate). There are 14 items: M5, M6 and M8, in lengths from 12 to 50mm. Class 8.8 is high tensile, and corresponds to imperial grade 5.

Every item is supplied as a pack of 100.

Where this product is used

• Fastening with a nut or into a tapped hole, where the flange acts as a built-in washer under the head
• Replacing a hex flange bolt of the same thread form, diameter and length

Features

• 14 items: M5, M6 and M8
• Class 8.8, zinc yellow passivate
• Length 12 to 50mm
• Sizes: M5, M6 and M8

Key specifications

Choosing the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Length is measured from under the head to the end of the screw.
