HiKOKI C3606DPA(H4Z) 36V C3606DPA(H4Z) | AIMS Industrial

• Rotatable dust extractor nozzle for variable working positions
• Plunge cuts and precise cuts up to a depth of 66mm
• Variable speed for different materials
• Easy-to-read scales for accurate angle and depth adjustment
• Soft start for smooth start-ups and fast brake for improved safety
• Accurate precision cutting when fitted to a guide rail (compatible with various rails)
• Compatible with the HiKOKI MultiVolt battery

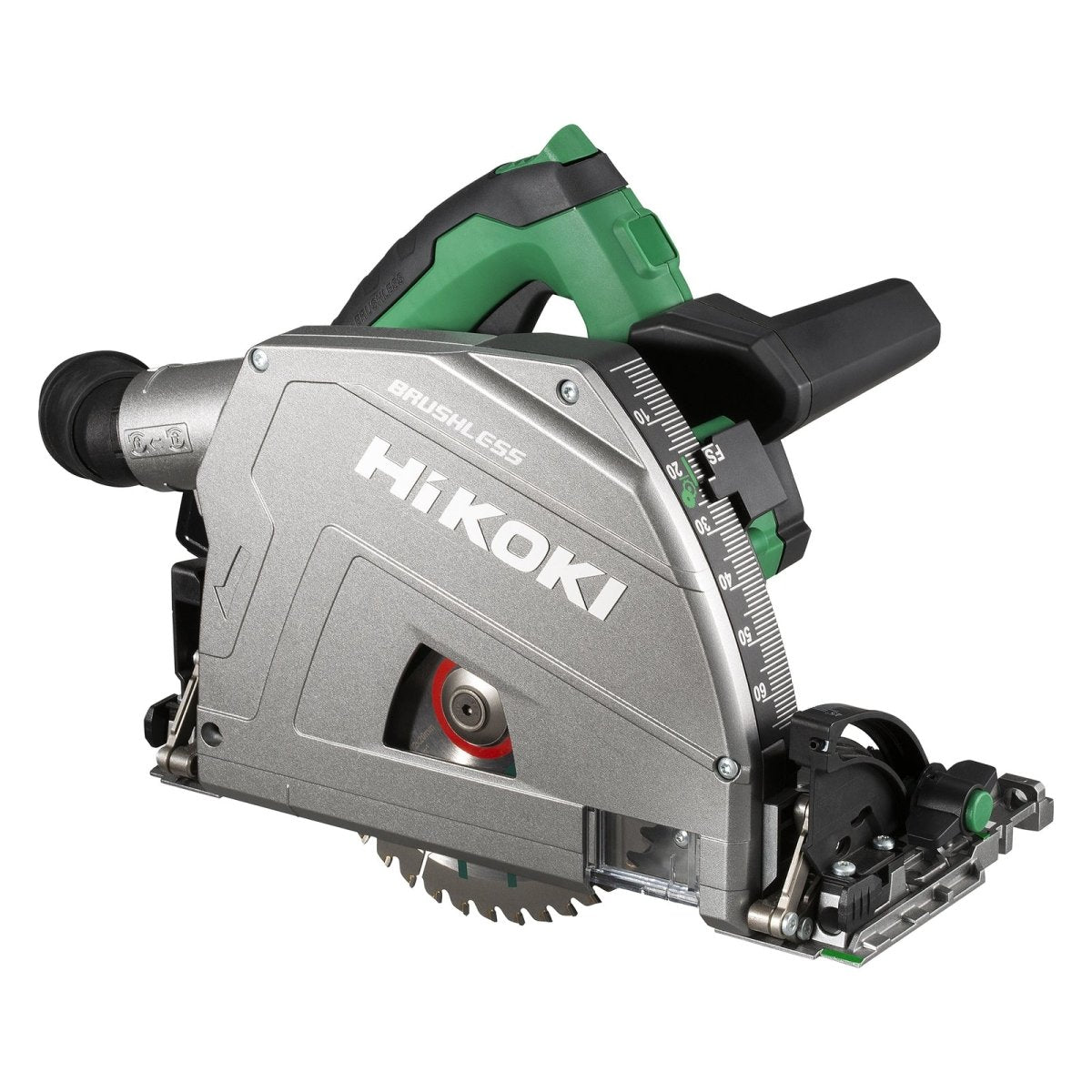

This 36V brushless 165mm plunge cut saw makes plunge cuts up to 66mm deep with variable speed from 2,500 to 5,200rpm and guide rail compatibility.

Cabinet making and joinery

• Plunge cuts up to 66mm deep for cutouts and stopped cuts
• Straight, splinter-free cuts when fitted to a guide rail
• Matching blade speed to the material with variable speed control
• Accurate depth and angle setting with easy-to-read scales

Fit-out and shopfitting

• Breaking down sheet and panel stock cleanly
• Bevel cuts from -1 to 46 degrees for angled work
• Repeatable rail-guided cuts across multiple panels
• Cleaner work areas with the rotatable dust extractor nozzle

Building and construction

• Cordless cutting power on site from the 36V brushless motor
• Safer start-ups and stops with soft start and fast brake
• Adapting the dust nozzle to any working position

Flooring

• Clean cross and rip cuts in flooring boards along a guide rail
• Plunge starts mid-panel for door thresholds and inlays
• Controlled depth cuts to avoid the subfloor

• Voltage: 36V
• Motor type: Brushless
• Blade diameter: 165mm
• Maximum cutting depth at 0 degrees: 66mm
• Maximum cutting depth at 45 degrees: 43mm
• No-load speed: 2,500 to 5,200rpm
• Bevel capacity: -1 to 46 degrees
• Blade mounting hole diameter: 20mm
• Switch type: Trigger
• Lock off button: Yes
• Brake function: Yes
• Soft start: Yes
• Overload protection: Yes
• Overheat protection: Yes
• Weight including battery: 5.4kg
• Dimensions (L x W x H): 391 x 206 x 269mm
• Battery: Compatible with the HiKOKI MultiVolt battery
