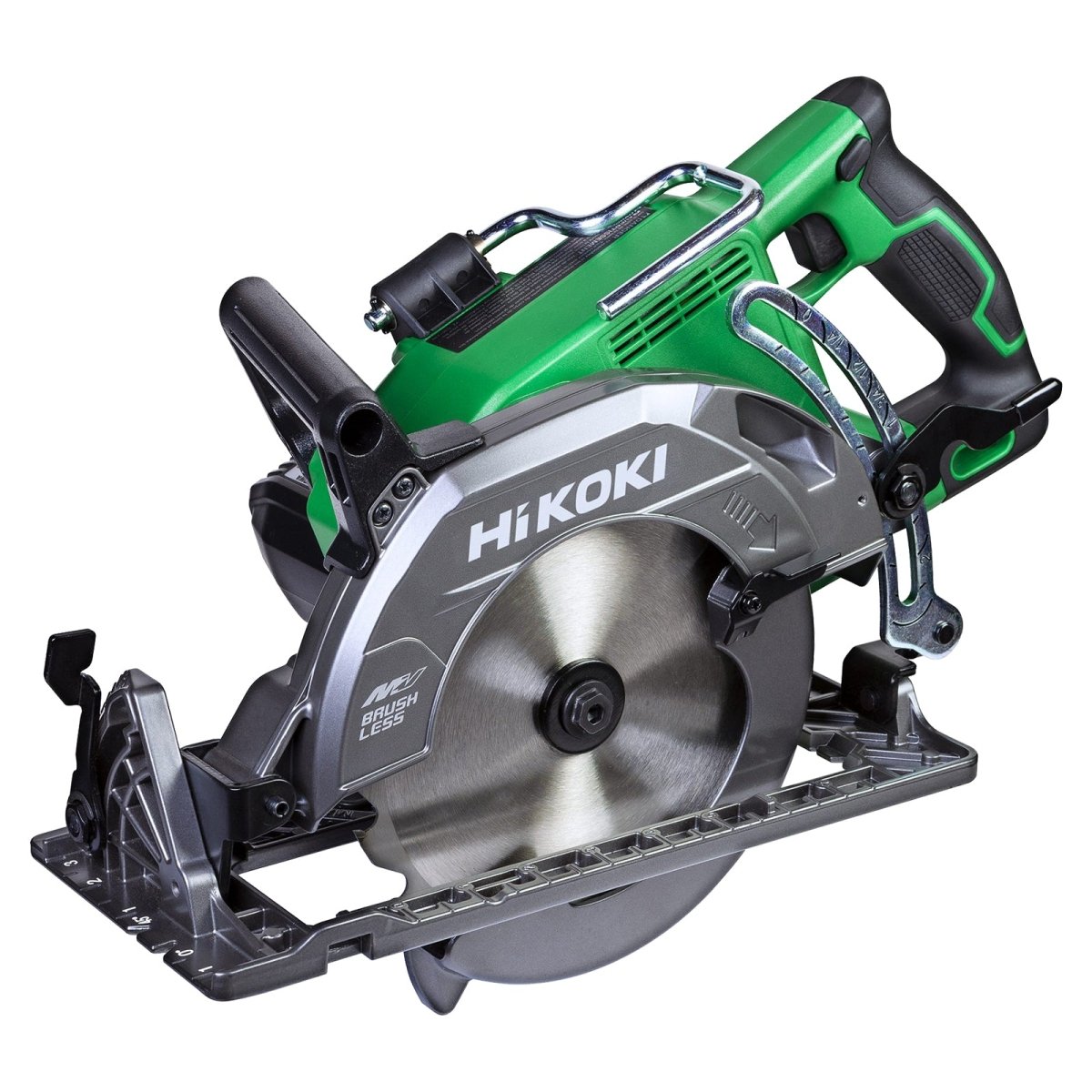

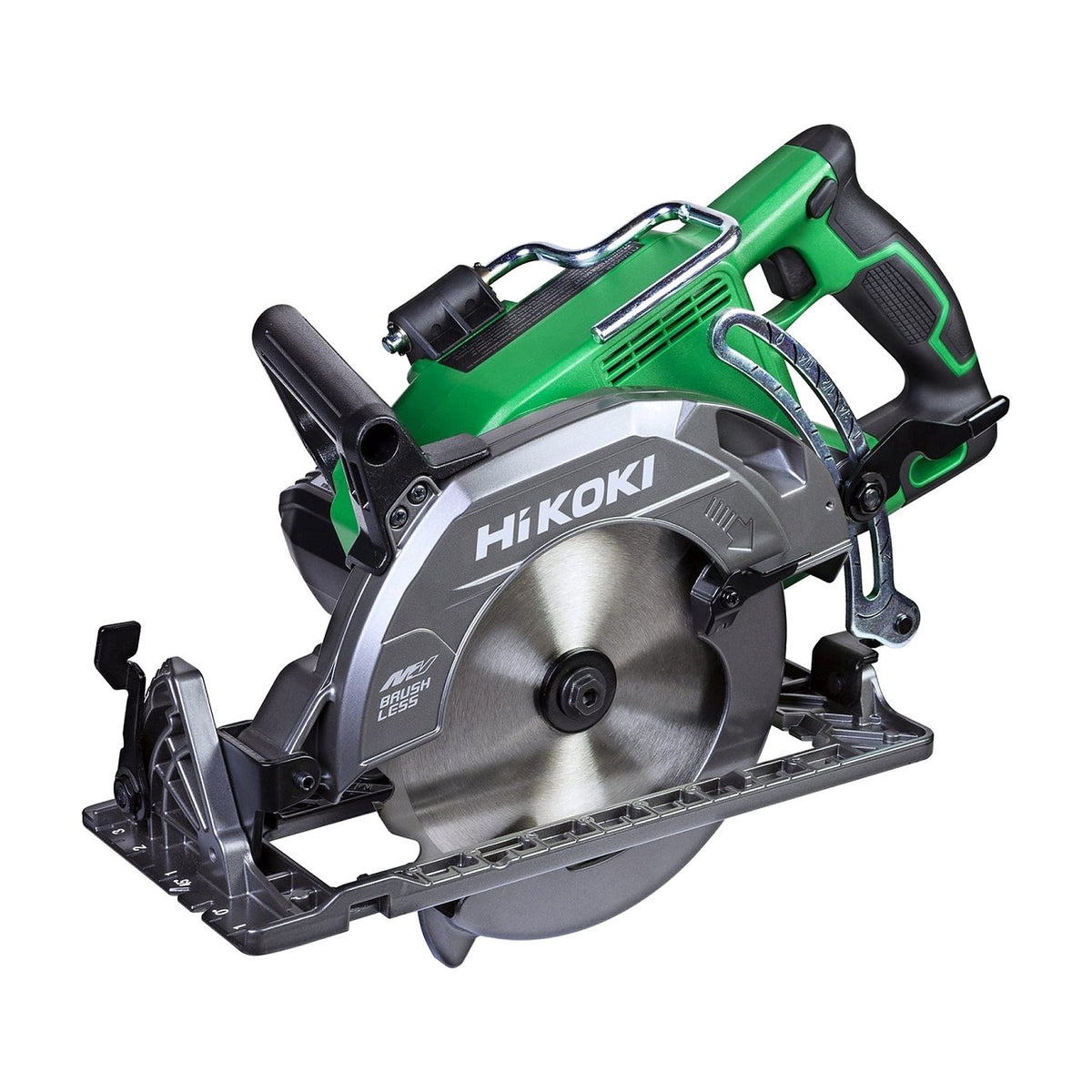

HiKOKI C3607DWA(H4Z) 36V C3607DWA(H4Z) | AIMS Industrial

• Lightest weight rear handle circular saw in the market
• Best balanced design
• Easy to push and cut a straight line
• Cutting speed equal to an AC-powered tool
• Kickback mitigation system

This 36V brushless rear handle circular saw delivers AC-equal cutting speed and up to 500 cuts per charge, with a 185mm blade cutting 62mm deep at 90 degrees and a 53 degree bevel range.

Framing and Carpentry

• Cutting framing timber to length on site
• AC-equal cutting speed for steady production work
• Up to 500 cuts per charge for a full work session
• Rafter hook for handy storage between cuts

Concrete Form Building

• Cutting formwork timber and sheet
• Bevel cuts up to 53 degrees with positive stops
• Magnesium base for durable site use

Roofing and Construction

• Cutting rafters and roof timbers
• Lightweight 4.7kg body for work at height
• Kickback mitigation system for safer cutting

General Site Work

• Straight, controlled cuts in timber and board
• 62mm depth at 90 degrees for thicker stock
• Cordless freedom away from power leads

• Voltage: 36V
• Motor type: Brushless
• Blade diameter: 185mm
• Maximum cutting depth at 90 degrees: 62mm
• Maximum cutting depth at 45 degrees: 45mm
• No-load speed: 5,100rpm
• Maximum bevel angle: 53 degrees
• Blade mounting hole diameter: 20mm
• Switch type: Trigger
• Kickback protection system: Yes
• Lock off button: Yes
• Hook: Yes
• 45 degree position stop function: Yes
• Constant speed control: Yes
• Brake function: Yes
• Soft start: Yes
• Overload protection: Yes
• Overheat protection: Yes
• Dimensions including battery (L x H x W): 432 x 213 x 260mm
• Weight including battery: 4.7kg
• Battery: Compatible with HiKOKI MultiVolt battery
• Included accessories: Saw blade, hook, wrench
