• Reactive Force Control stops the motor automatically when the gyroscope sensor detects a predetermined angle, preventing excessive tool jerking
• LED light warning signals occur with RFC and when the tool is overburdened or overheats
• Highly durable, heat-resistant design that is difficult to stall during continuous work
• Side handle can be mounted in 11 different positions to improve workability
• Compatible with the HiKOKI MultiVolt battery

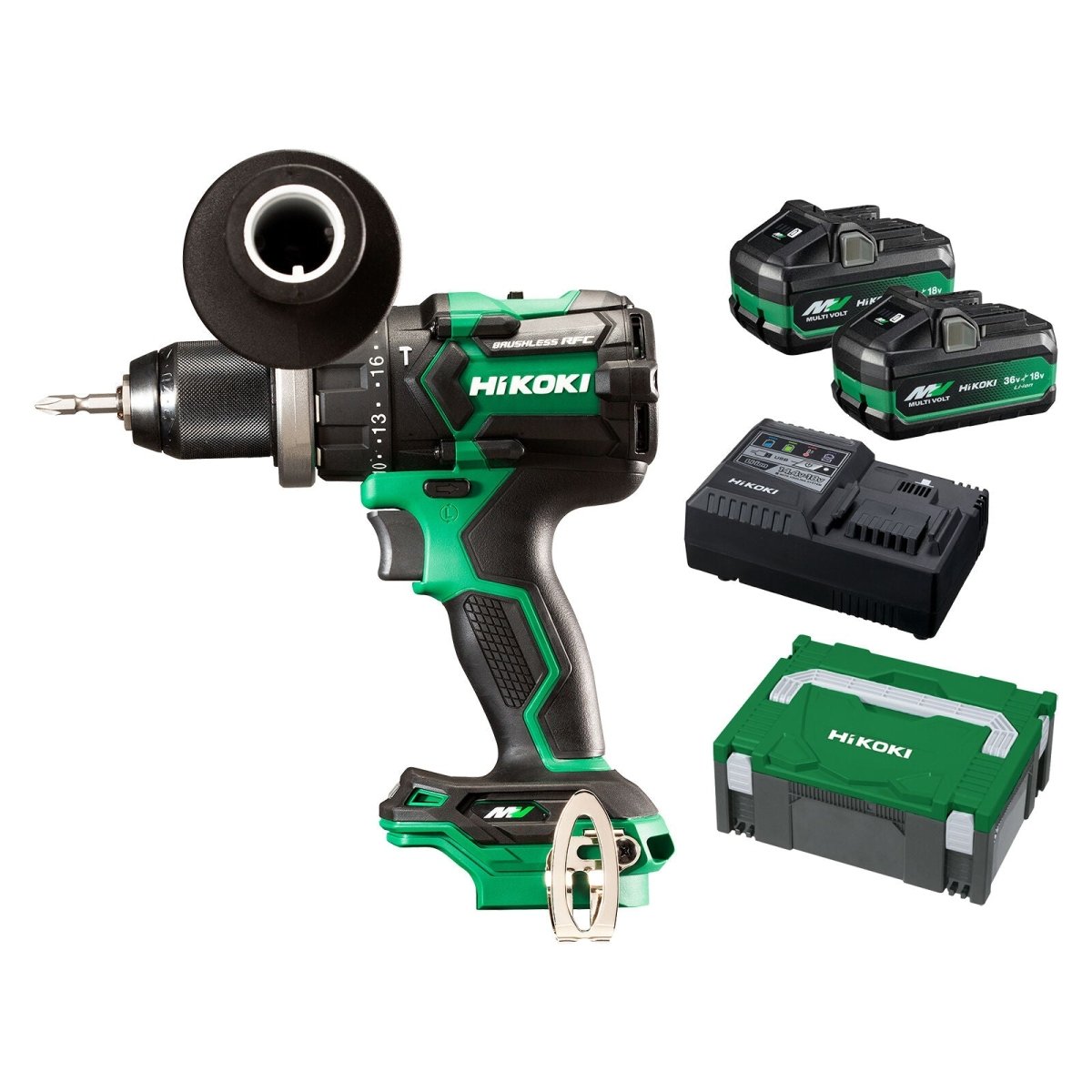

This 36V brushless cordless hammer drill driver delivers 155Nm of hard-joint torque across wood, steel, masonry and concrete with Reactive Force Control.

Construction and Carpentry

• Driving large wood screws up to M16 x 100mm
• Boring holes with hole saws up to 118mm
• Drilling timber with a self feed bit up to 95mm
• Tailoring torque to the fastener

Masonry and Concrete

• Hammer drilling brick and masonry up to 22mm
• Drilling and driving across mixed materials in one tool (wood, steel, masonry and concrete)
• Controlled drilling with kickback protection (Reactive Force Control)

Metal Fabrication and Maintenance

• Drilling steel and aluminium up to 20mm
• High torque driving into hard joints
• Sustained continuous work without stalling (heat-resistant durable design)
• Two-handed control with the side handle

• Battery voltage: 36V
• Motor type: Brushless
• Maximum torque hard joint: 155Nm
• Maximum torque soft joint: 100Nm
• Drill chuck type: Keyless metal chuck
• Chuck capacity: 1.5 to 13mm
• Clutch stages: 22 (torque 1.5 to 8.0Nm)
• No load speed low: 0 to 550rpm
• No load speed high: 0 to 2,000rpm
• No load impact rate: 30,000ipm
• Capacity brick and masonry: 22mm
• Capacity steel and aluminium: 20mm
• Capacity wood hole saw: 118mm
• Capacity wood self feed bit: 95mm
• Capacity small screw: M6
• Capacity wood screw: M16 x 100mm
• Switch type: Trigger
• Light: LED white
• Reactive Force Control (RFC): Yes
• Forward / reverse mode: Yes
• Spindle lock: Yes
• Weight including battery: 2.1kg
• Dimensions (L x H x W): 190 x 267 x 89mm
• Battery: Compatible with HiKOKI MultiVolt battery
• Included accessories: Side handle, hook and driver bit
