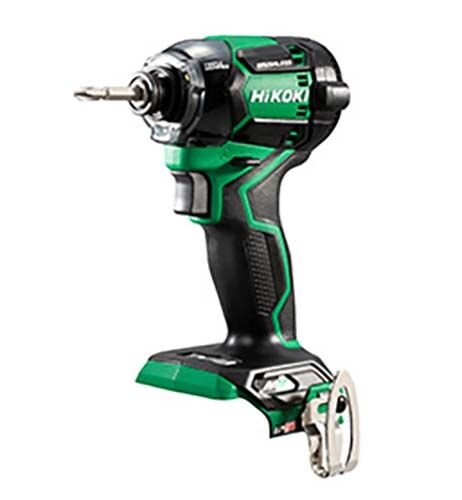

HiKOKI WH36DC(HRZ) 36V WH36DC(HRZ) | AIMS Industrial

• High torque impact driver
• Five modes: max, bolt, bolt single, soft and self drilling
• IP56 dust and water resistance
• Triple hammer for high efficiency
• Three LED lights provide more visibility in dark and compact areas

This 36V brushless impact driver delivers 215Nm of tightening torque with five tightening modes and IP56 dust and water protection for fast, controlled fastening in confined spaces.

Construction and Framing

• Driving ordinary bolts from 5 to 18mm on structural fit outs (ordinary bolt capacity)
• Fixing high tension bolts from 5 to 14mm where holding strength matters (high tension bolt capacity)
• Self drilling screws from 3.5 to 6mm into steel framing in the self drilling mode (self drilling screw mode)
• Working in tight wall cavities and confined spaces with the compact 1.6kg body

Carpentry and Joinery

• Running small screws from 4 to 10mm for fit out and fixing (small screw capacity)
• Soft mode at 76Nm for delicate driving without stripping or overdriving
• Switching between power, bolt and soft modes to match the fastener (five tightening modes)
• Working in low light cabinets and roof spaces with three LED lights (three LED lights)

Maintenance and Site Servicing

• Quick fastening across general repair tasks with 215Nm on tap
• Working in dusty and wet conditions thanks to IP56 protection
• Fast driving at no load speeds up to 3,400 min-1 for repetitive work
• Three impacts per rotation from the triple hammer for efficient fastening (triple hammer mechanism)

• Power: 36V
• Motor: Brushless
• Tightening torque power mode: 215Nm
• Tightening torque bolt mode: 215Nm
• Tightening torque soft mode: 76Nm
• Capacity small screw: 4 to 10mm
• Capacity ordinary bolt: 5 to 18mm
• Capacity high tension bolt: 5 to 14mm
• Capacity self drilling screw: 3.5 to 6mm
• No-load speed power mode: 0 to 3,400 min-1
• No-load speed bolt mode: 0 to 2,900 min-1
• No-load speed bolt single mode: 0 to 2,900 min-1
• No-load speed soft mode: 0 to 900 min-1
• No-load speed self drilling screw mode: 0 to 3,700 min-1
• Impact rate power mode: 0 to 4,100 min-1
• Impact rate bolt mode: 0 to 4,100 min-1
• Impact rate bolt single mode: 0 to 4,100 min-1
• Impact rate soft mode: 0 to 2,000 min-1
• Impact rate self drilling screw mode: 0 to 2,200 min-1
• Drive: 6.35mm bit holder
• Type of switch: Variable speed trigger switch with forward/reverse changeover lever (with brake)
• LED light: White LED (always on, light only SW-on, and always off)
• Weight: 1.6kg
• Dimensions (L x H): 114 x 241mm
