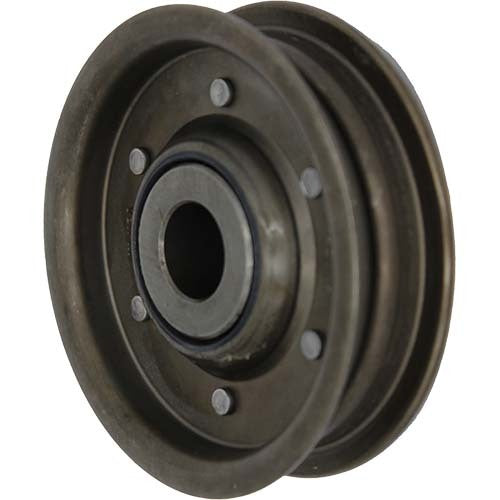

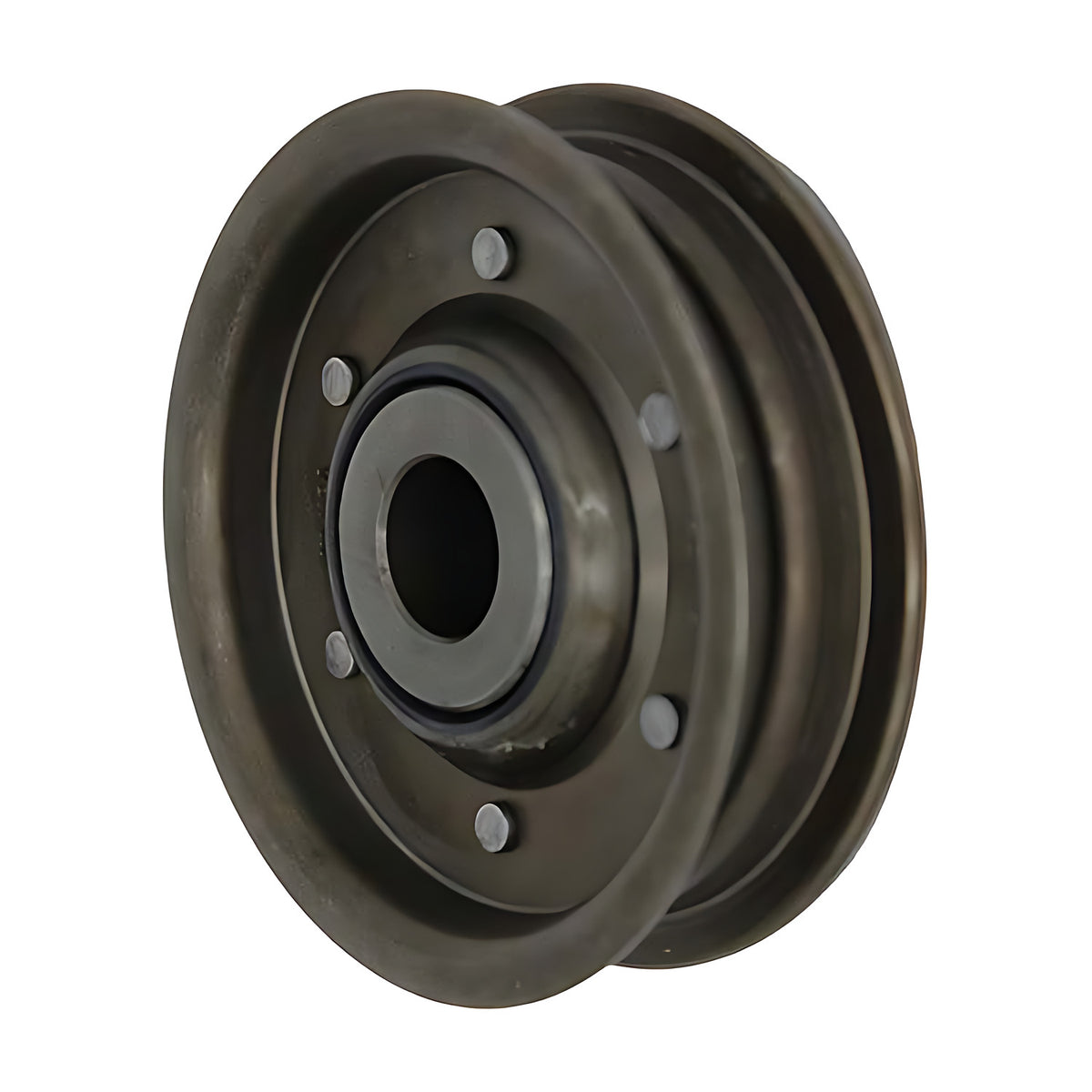

Aetna Flat Flanged Idler Pulley 2-3/4" OD x 1/2" Bore x 1" Wide - AG2354-AS
Available
Aetna Flat Flanged Idler Pulley - 4 Point Heavy Duty, 2-3/4 to 8" OD: 10 sizes in this listing (AG2354-AS to AG2814), 2-3/4 to 8" OD.
Aetna 4 point heavy duty flat flanged idler pulleys. The flanges keep the belt on the pulley. They are made to give long life under demanding conditions, install on standard 1/2 in or 5/8 in bolts, and are used as belt tensioners or direction changers.
Aetna is a brand of Aetna Bearing Company, based in Livonia, Michigan, USA.
Where this product is used
- Agricultural machinery
- Power transmission equipment
- Conveyor systems
- Flat belt drives that need a tensioner or a direction change
Features
- Oversize factory-packed lubricant chamber, so no relubrication is needed
- Case hardened to resist belt abrasion
- Hardened bearing races, with accurately formed outer and inner rings for smooth running
- Self-contouring, free-running, self-wiping seal that keeps positive contact when the pulley is misaligned
- Full ball complement for durability
- Bearing is permanently lubricated and sealed against dirt and grime
- Bore sized to clear standard 1/2 in or 5/8 in bolts, so it can be fitted to an existing design with little or no change
- Aetna flat flanged idler pulleys from AIMS Industrial, Sydney, with Australia-wide delivery
Key specifications
| Specification | Detail |
|---|---|
| Brand | Aetna |
| Product type | Flat Flanged Idler Pulley |
| Series | 4 Point Heavy Duty |
| Outside diameter range | 2-3/4 to 8 in |
| Nominal bore | 1/2 in and 5/8 in |
| Model codes | AG2354-AS to AG2814 |
| Sizes in this listing | 10 |
Available sizes
| Model | SKU | OD, in (mm) | Bore, in | Face width, in (mm) | Flange diameter, in (mm) | Weight |
|---|---|---|---|---|---|---|
| AG2354-AS | A0150977 | 2-3/4 (69.85) | 0.516 to 0.522 | 1 (25.4) | 3-7/16 (87.312) | 0.68 lb (0.308 kg) |
| AG2354-FK | A0150978 | 2-3/4 (69.85) | 0.516 to 0.522 | 1 (25.4) | 3-7/16 (87.312) | 0.61 lb (0.276 kg) |
| AG2352 | A0150972 | 2-7/8 (73.025) | 0.643 to 0.649 | 11/16 (17.462) | 3-1/4 (82.55) | 0.70 lb (0.317 kg) |
| AG2413-A | A0150979 | 4 (101.6) | 0.516 to 0.522 | 1-1/8 (28.575) | 4-29/64 (113.109) | 1.28 lb (0.580 kg) |
| AG2413 | A0150973 | 4 (101.6) | 0.643 to 0.649 | 1-1/8 (28.575) | 4-29/64 (113.109) | 1.25 lb (0.566 kg) |
| AG2452-A | A0150980 | 4-1/4 (107.95) | 0.516 to 0.522 | 3/4 (19.05) | 4-5/8 (117.475) | 1.24 lb (0.562 kg) |
| AG2452 | A0150974 | 4-1/4 (107.95) | 0.643 to 0.649 | 3/4 (19.05) | 4-5/8 (117.475) | 1.21 lb (0.548 kg) |
| AG2613-A | A0150981 | 6 (152.4) | 0.516 to 0.522 | 1 (25.4) | 7 (177.8) | 2.03 lb (0.920 kg) |
| AG2613 | A0150975 | 6 (152.4) | 0.643 to 0.649 | 1 (25.4) | 7 (177.8) | 2.00 lb (0.907 kg) |
| AG2814 | A0150976 | 8 (203.2) | 0.643 to 0.649 | 1-1/8 (28.575) | 8-3/4 (222.25) | 3.38 lb (1.553 kg) |
Model codes are the supplier's part numbers; the SKU is the AIMS part number. Dimensions are in inches with millimetres in brackets, as published in the supplier's catalogue.
Selecting the right option
Match the idler to the belt it runs on (belt type), then the outside diameter, the bore or bolt size, and the width the belt needs. The flanges keep the belt on the pulley, so the face width needs to suit the belt.
The model codes and dimensions for each size are in the sizes table. If you have the old idler, match its model code or measure the outside diameter, bore and width.

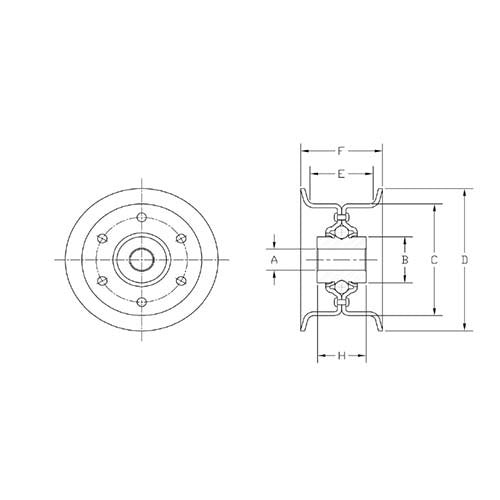

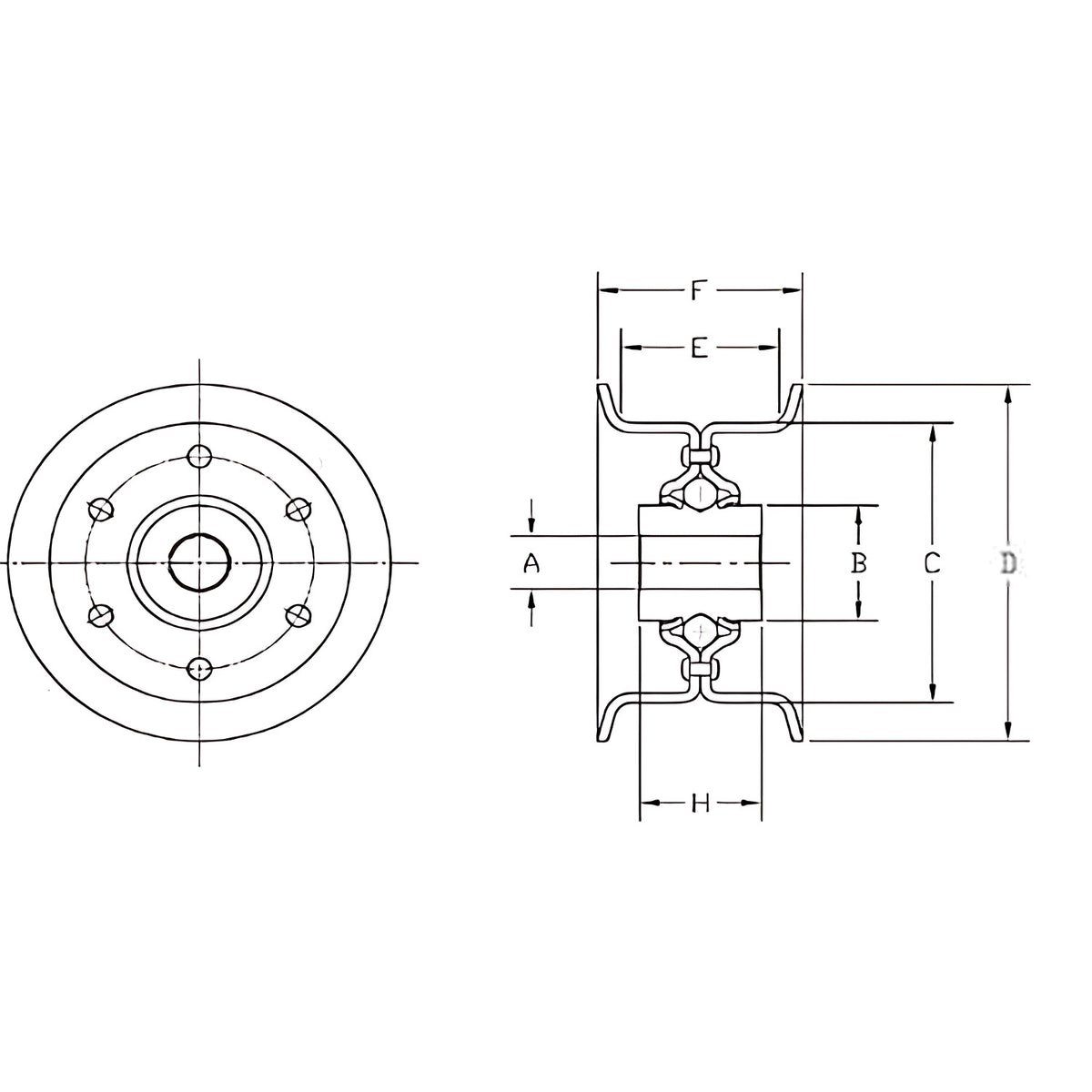

Dimension letters (A, B, C and so on) follow the Aetna catalogue drawing. Where the drawing does not name a letter as a standard dimension, the table lists it as Dimension B, C and so on.
If the size you need is not listed, send AIMS the outside diameter, bore and belt type and we will check what is available.
The catalogue page for this product, with its dimension drawing, can be downloaded from the Catalogue section of this page. Dimensions are as published in the supplier's catalogue.
Fitting and use
Mount the idler on a bolt that matches the bore, or the reduction bush where one is fitted, and clamp through the bush or inner ring only so the pulley rim turns freely on the bearing.
Line the idler up with the belt path, keep the running face clean and free of burrs, and set belt tension to the drive manufacturer's figure.
The bearing is sealed and lubricated at the factory. Keep water, grit and solvents away from the seals, and replace the idler if the bearing runs rough or noisy.
