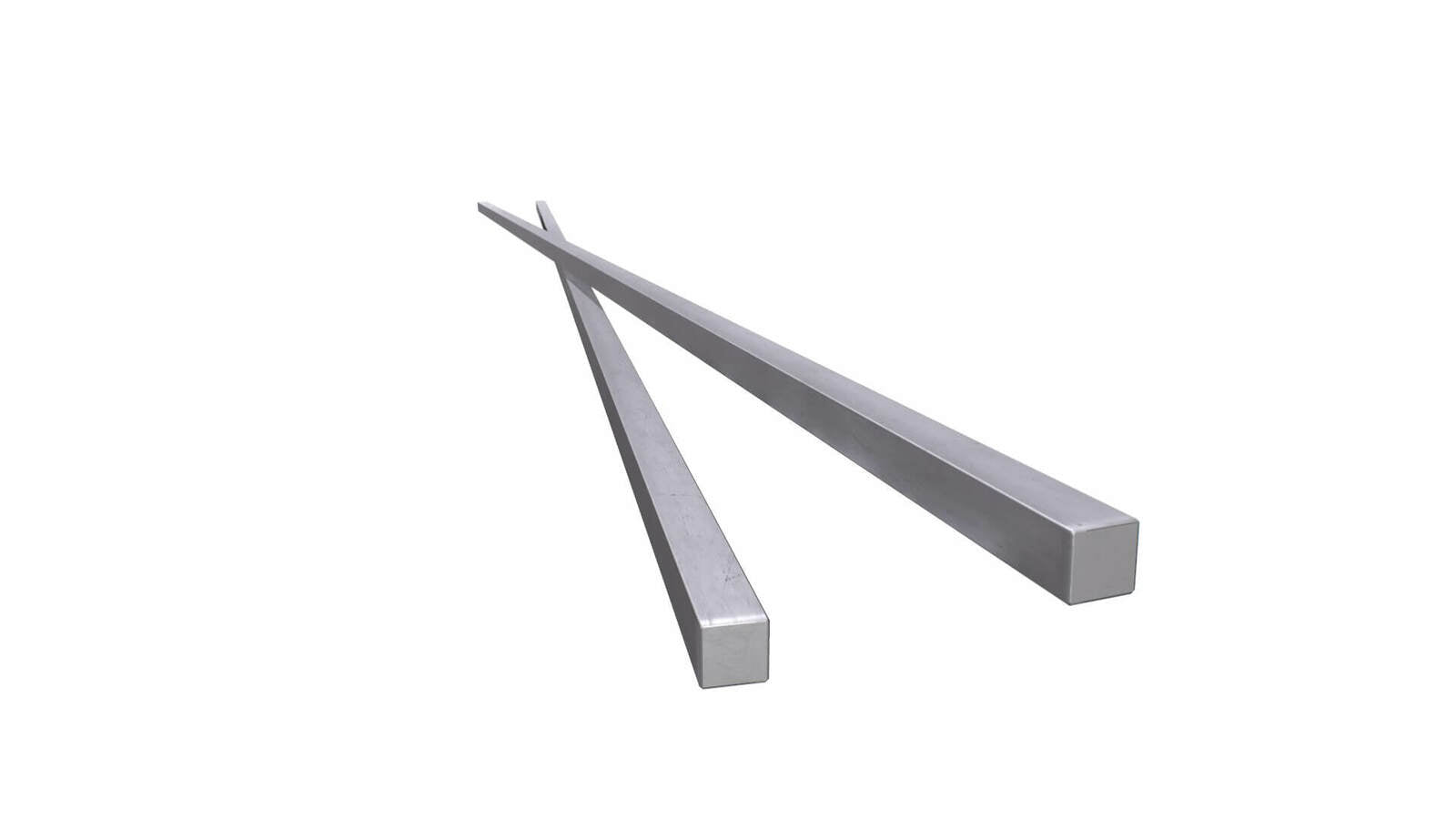

1/2 x 1/2 inch Key Steel, 304 Stainless Steel, 12 inch Length

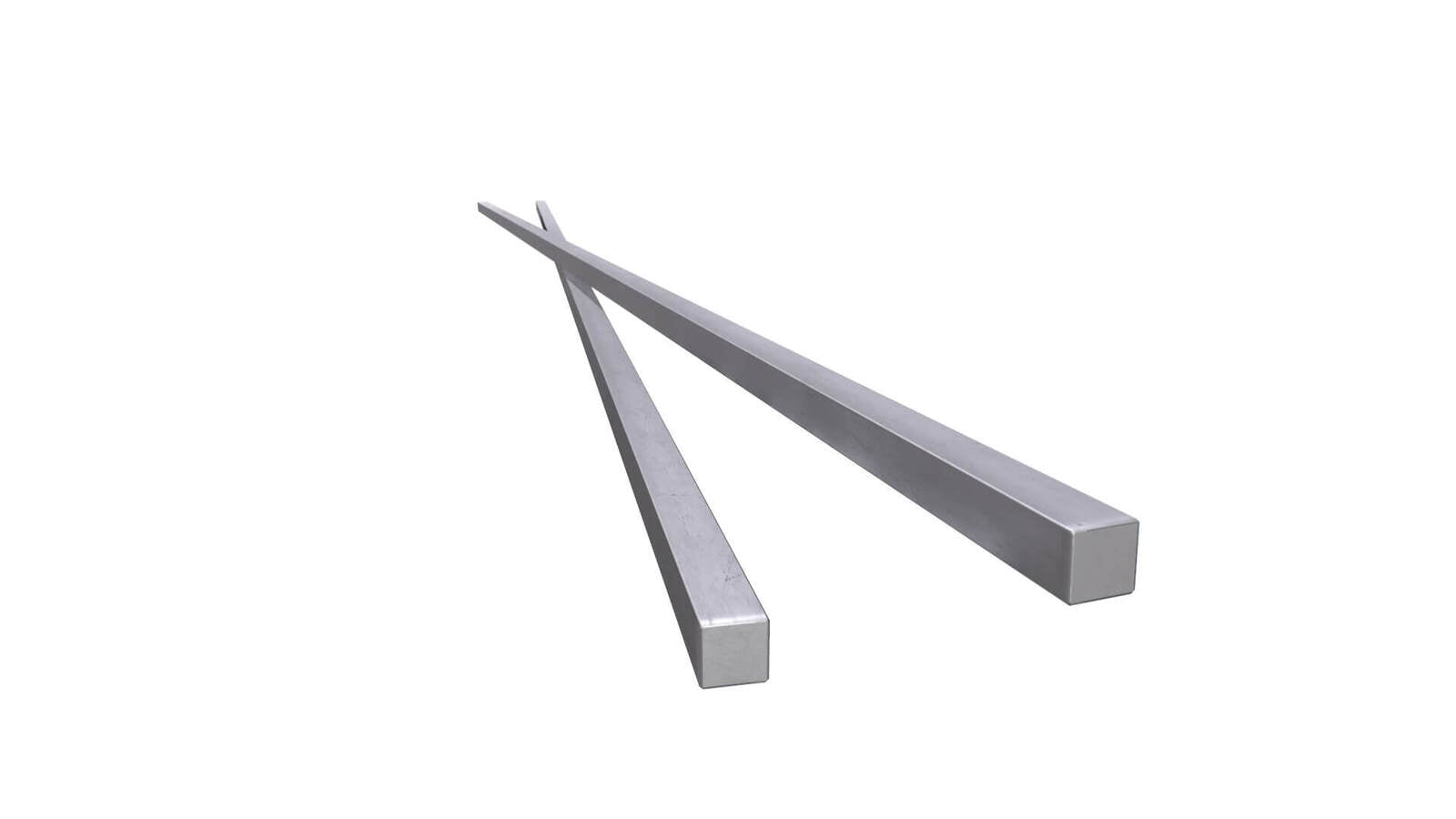

304 stainless key steel in imperial sizes, 3/16 x 3/16 to 1 x 1 inch. Key steel is bar made for keyways, and it is used where a shaft has a keyed drive running off it. It is supplied in 12 inch lengths (about 30 cm), and each piece is clearly marked for quick identification.

Sizes are listed as width x height. The table below gives the part number, the shaft range each size suits and the approximate mass of a 12 inch piece, as listed by the manufacturer.

Where this product is used

• Wet, washdown and corrosive environments where stainless steel is specified
• Keyed drive connections between shafts and pulleys, sprockets, gears and couplings
• Making replacement keys for worn or damaged keys
• Machinery repairs and maintenance

Features

• Key steel made for keyways
• 304 stainless steel
• Supplied in 12 inch lengths (about 30 cm), clearly marked for identification
• 11 imperial sizes, 3/16 x 3/16 to 1 x 1 inch
• Shaft range and approximate mass listed

Key specifications

Sizes available

Selecting and fitting

Choose the key size from the shaft diameter. Where the table lists a shaft range, that is the range the size suits. A size with no shaft range listed is an additional size, so check it against the keyway dimensions of the shaft and the hub. Key steel is bar, and it is cut to the length you need.

The other key steel listings are Key Steel, Zinc Plated, Imperial, 1/8 x 1/8 to 2 x 2 inch, Key Steel, Zinc Plated, Imperial, 5/32 x 5/32, 3/16 x 1/8, 1/2 x 1/4 and 5/8 x 9/16 inch, Key Steel, Zinc Plated, Metric, 3 x 3 to 40 x 22 mm, Key Steel, Zinc Plated, Metric, 8 x 6 and 10 x 6 mm, Key Steel, 304 Stainless Steel, Metric, 4 x 4 to 20 x 20 mm and Key Steel, 304 Stainless Steel, Metric, 3 x 3 mm.

Deburr the ends after cutting the key to length, and check the fit in the keyway before assembly.

Dimensions are as listed in the manufacturer catalogue and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
