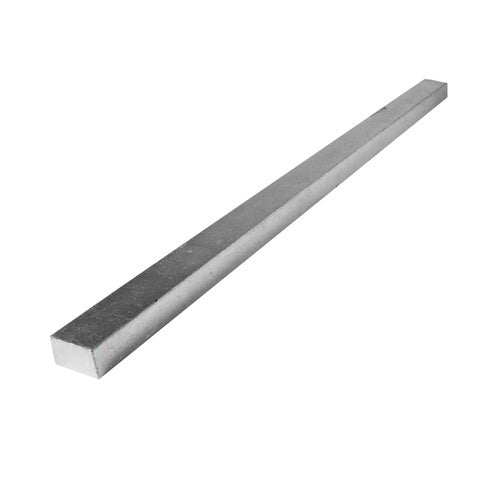

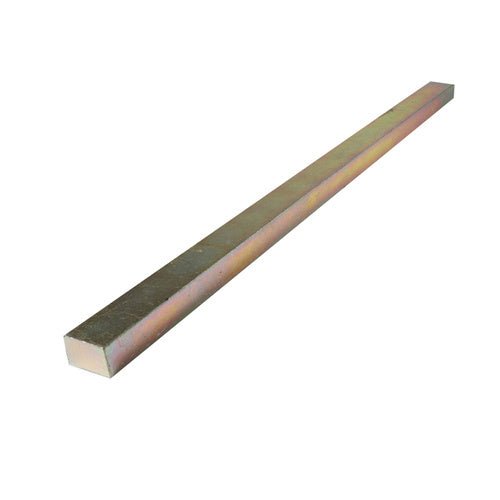

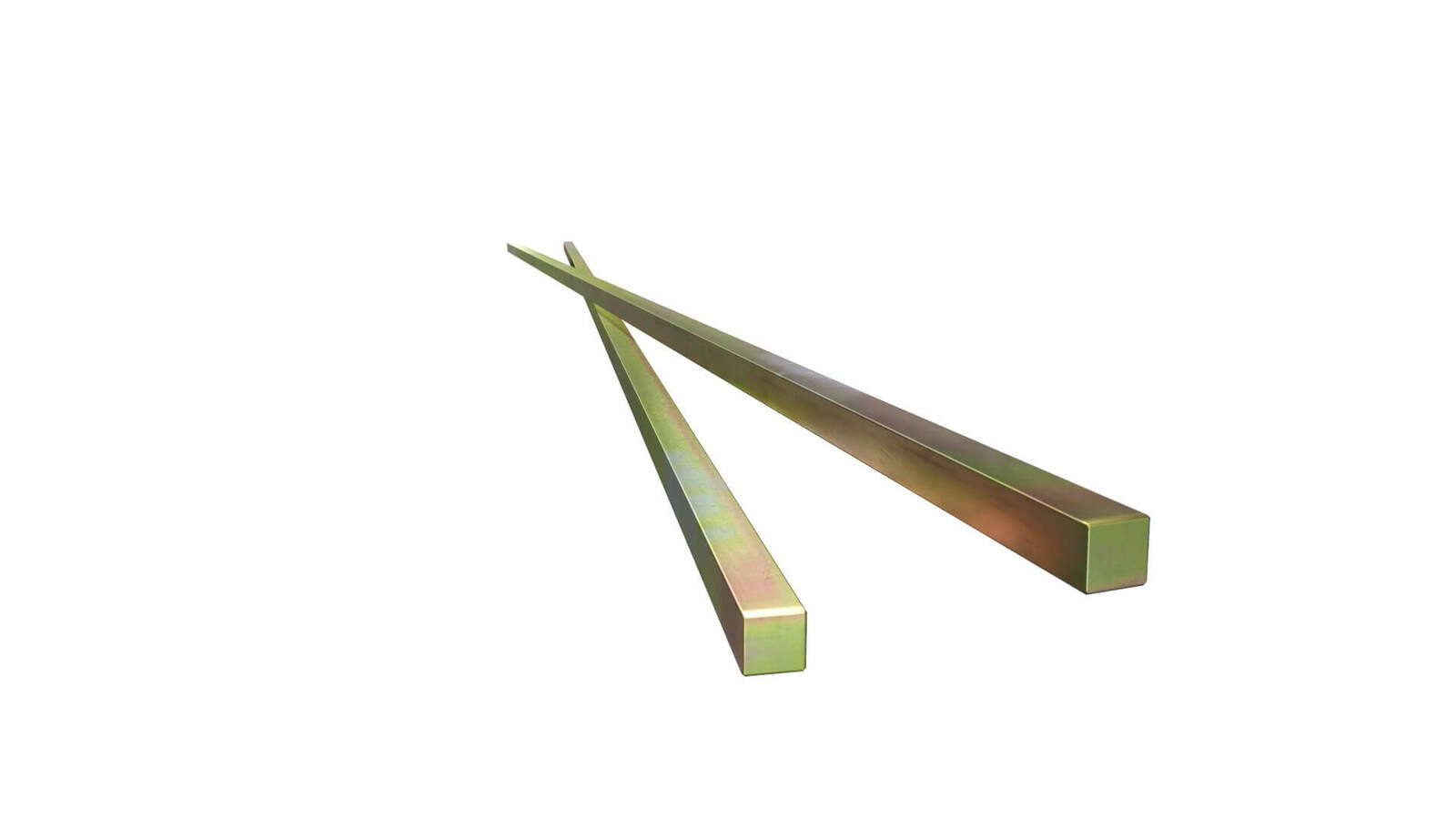

Precision Brand imperial zinc plated key steel KS1/4X1/2

This Precision Brand zinc plated imperial key steel comes in 15 sizes and is supplied in 12" (305mm) lengths, with the size marked on each piece. The sizes are 3/32 x 3/32, 5/32 x 5/32, 3/16 x 5/16, 7/32 x 7/32, 1/4 x 1/2, 9/32 x 9/32, 3/8 x 5/8, 3/8 x 3/4, 1/2 x 7/8, 9/16 x 1, 5/8 x 1, 11/16 x 11/16, 3/4 x 7/8, 1 x 1/4 and 1 5/8 x 1 5/8".

The key steel is cold drawn low carbon C1018 steel, zinc plated for rust prevention. Most dimension tolerances are oversized, so the key fits tightly in the keyway for positive, zero backlash power transmission. Made in USA.

Where this product is used

• Power transmission, where a key drives a pulley, coupling, propeller or drum from a shaft
• Keyway fitting by manufacturers and fitters
• Die setting

Features

• 15 sizes, from 3/32 x 3/32 to 1 5/8 x 1 5/8"
• 12" (305mm) lengths, with the size marked on each piece
• Made from cold drawn low carbon C1018 steel
• Zinc plated for rust prevention
• Most dimension tolerances are oversized for a tight keyway fit and zero backlash power transmission
• Made in USA

Key specifications

Choosing the right option

Match the key to the keyway on your shaft and hub, using the size in the options table. Square key steel suits a keyway where the width and height are equal, and rectangle key steel suits a keyway where they differ. Imperial and metric keyways are not interchangeable, so check the unit on your shaft. Key steel is supplied in 12" (305mm) lengths and is cut to the length you need.
